In quantitative high-performance liquid chromatography (HPLC), pushing the boundary of quantitation down to trace levels is a constant requirement across pharmaceutical impurity testing, environmental monitoring, and food safety testing. However, chromatographers often confuse two distinct analytical concepts: analytical sensitivity in HPLC and the limit of quantitation (LOQ).
While sensitivity is defined mathematically as the slope of the detector response curve, detection limits depend on the interplay between signal slope and baseline noise. Achieving lower detection limits requires not just maximizing detector response, but actively minimizing systematic and physical noise sources throughout the chromatographic system.
Key Takeaways for Analytical Chemists
- Sensitivity vs. Detection Limit: Analytical sensitivity in HPLC is the change in detector signal per unit change in analyte concentration (S = Δ y / Δ x). Detection limits (LOD/LOQ) represent the lowest concentration that can be reliably distinguished from baseline noise.
- Noise Dictates the Floor: Signal magnitude alone is meaningless without accounting for baseline noise (σN). Low sensitivity with low noise often yields superior detection limits compared to high sensitivity with high noise.
- Peak Sharpening Increases Sensitivity: Band broadening directly reduces peak height (H). Increasing column efficiency (N) and optimizing retention factor (k') sharpens peaks, increasing S/N without altering sample mass.
- Align Methodologies with ICH Q2(R2): The choice between S/N ratios and standard deviation/slope models must be justified based on detector type and data characteristics.
Defining Analytical Sensitivity in HPLC vs. LOD and LOQ
In calibration science, analytical sensitivity in HPLC is defined as the functional derivative of the calibration curve:
S = dy/dx
For a linear calibration function (y = mx + b), the slope (m) represents the analytical sensitivity. High sensitivity means that a small change in analyte concentration (x) produces a large, measurable shift in detector response (y).
HIGH SENSITIVITY (Steep Slope) vs. LOW SENSITIVITY (Shallow Slope)
Response (y)
^
│ * High Sensitivity (m1 = 50,000)
│ /
│ /
│ / * Low Sensitivity (m2 = 5,000)
│ / /
│ / /'
│ / /'
│ //'
└─────────────────────────────/─────────────────────────────> Concentration (x)
However, high sensitivity alone does not guarantee a low detection limit. The Limit of Detection (LOD) is the lowest concentration that can be reliably detected above baseline noise, while the Limit of Quantitation (LOQ) is the lowest concentration that can be quantified with acceptable precision and accuracy.
Parameter | Definition | Mathematical Function | Practical Significance |
|---|---|---|---|
Analytical Sensitivity (S) | Detector response gain per concentration unit | S = m = Δ y / Δ x | Indicates detector responsiveness (e.g., UV extinction coefficient). |
Limit of Detection (LOD) | Threshold for qualitative detection | LOD = (3.3*σ)/S | Determines presence vs. absence of analyte. |
Limit of Quantitation (LOQ) | Threshold for quantitative accuracy (S/N approx 10:1) | LOQ = (10*σ)/S | Defines the validated lower boundary of the working range. |
Anatomy of Chromatographic Noise: The Real Limit to Sensitivity
Baseline noise represents random or periodic fluctuations in the detector signal in the absence of an eluting analyte. Understanding noise morphology is essential for optimizing analytical sensitivity in HPLC.
TYPES OF CHROMATOGRAPHIC NOISE
Detector Signal
^
│ ┌───┐ ┌───┐ ┌───┐ High-Frequency Noise (Short-Term)
│ │ └───┘ └───┘ └───┐ (Electronic / Detector Photodiode)
│──┼───────────────────────┴───────────────────────────────────────────────
│ /\ /\ Low-Frequency Noise (Long-Term)
│ /\ / \ /\ / \ (Pump Pulsation / Temperature Shift)
│─/──\──/────\──/──\/────\─────────────────────────────────────────────────
│ /'''... Baseline Drift
│ ...'''/\'' ''... (Mobile Phase Gradient / Column Bleed)
└──────────────────────────────────────────────────────────────────────────> Time (t)
The Three Baseline Noise Classifications
Short-Term Noise (High Frequency): Rapid fluctuations occurring on a timescale of seconds (< 1 second). Caused by detector electronics, photodiode array thermal variance, or stray radiation.
Long-Term Noise (Low Frequency): Fluctuations occurring on a timescale similar to peak width (10-60 seconds). Caused by hydraulic pump pulsations, inadequate mobile phase mixing, or ambient temperature instability across the flow cell.
Baseline Drift: Monotonic signal drift over several minutes to hours. Caused by column temperature changes, gradual mobile phase composition shifts during gradients, or optical lamp degradation.
Long-term noise is the most damaging to analytical sensitivity in HPLC because its frequency matches the width of eluting chromatographic peaks, making it difficult for integration algorithms to distinguish baseline fluctuations from true analyte response.
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
Calculating LOD and LOQ Under ICH Q2(R2) Guidelines
The updated ICH Q2(R2) guideline outlines three validated approaches for determining LOD and LOQ. The selection depends on detector linearity and data characteristics.
ICH Q2(R2) LOD / LOQ DETERMINATION
│
┌───────────────────────┼───────────────────────┐
▼ ▼ ▼
Visual Inspection Signal-to-Noise Ratio Standard Deviation / Slope
(Qualitative/TLC) (Chromatographic) (Calibration/Regression)
│ │
▼ ▼
Measure Peak & Measure Blank SD (σ) &
Baseline Noise Calibration Slope (S)
│ │
LOD = 3:1 S/N LOD = 3.3 * σ / S
LOQ = 10:1 S/N LOQ = 10 * σ / S
Method 1: Signal-to-Noise (S/N) Ratio Approach
Applicable to chromatographic methods exhibiting steady baseline noise. Peak signal (H) is measured from the peak apex to the middle of the baseline noise band, while noise height is measured over a baseline segment spanning at least 20 times the peak width:
S/N = (2*H)/hN
- LOD Target: Concentration yielding S/N of approximately 3:1
- LOQ Target: Concentration yielding S/N of approximately 10:1
Method 2: Standard Deviation of the Blank / Calibration Slope Approach
When baseline noise is difficult to isolate, LOD and LOQ are calculated statistically using the standard deviation of blank responses (σ) or standard error of the regression intercept (SEb), combined with analytical sensitivity (S):
Where:
- σ = Standard deviation of blank injections or SEb from linear regression
- S = Slope (m) of the linear calibration curve near the low-concentration range
Chromatographic Parameters Impacting Sensitivity: The Role of Peak Height
Because UV/Vis, Fluorescence, and Mass Spectrometry detectors measure instantaneous analyte concentration in the flow cell, signal response correlates directly with peak height (H) rather than total peak area.
Any chromatographic variable that sharpens peak width (W) increases peak height and directly enhances analytical sensitivity in HPLC, even when total sample mass injected remains constant.
PEAK SHARPENING INCREASES SENSITIVITY (CONSTANT AREA)
Response
^
│ * (High Peak Height, H_1)
│ / \
│ / \ Shallow, Broad Peak (Low Sensitivity)
│ / \ ┌───┐
│ / * \ │ │ (Low Peak Height, H_2)
│ / / \ \ ┌─┘ └─┐
└───/───/───\───\──────┴───────┴────────────────────────────────────────> Time (t)
◄───► ◄──────────────►
Narrow W Broad W
The Mathematics of Peak Height Optimization

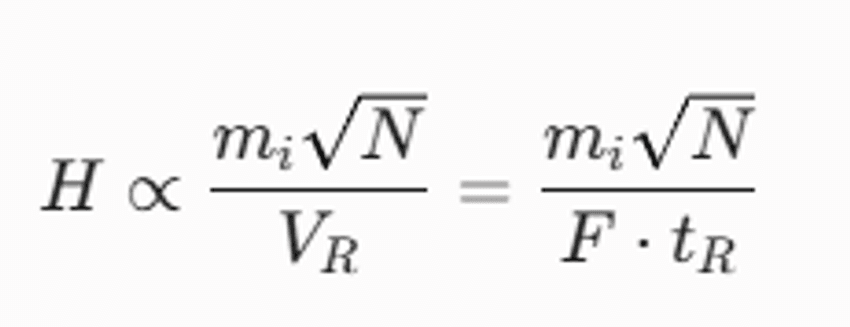

Peak height (H) can be expressed as a function of sample mass (mi), retention time (tR), and theoretical plate count (N):
Google Gemini
Where VR is retention volume and F is mobile phase flow rate. To optimize analytical sensitivity in HPLC, chromatographers can modify four key parameters:
Increase Theoretical Plates (N): Transitioning from standard 5 μm particles to sub-25 μm UHPLC core-shell packing increases N, producing narrower, taller peaks.
Optimize Retention Factor (k'): Analytes eluting too early (k' < 1) suffer from matrix interference, while analytes eluting late (k' > 10$) undergo excessive longitudinal diffusion (B-term), resulting in broad, flat peaks.
Reduce Column Inner Diameter (ID): Reducing column ID from 4.6mm to 2.1mm increases analyte concentration in the flow cell by a factor of (ID1/ID2)2 for equivalent sample mass, increasing peak height up to 4.8-fold.
Hardware and Optical Parameters for Maximum Sensitivity
Optimizing analytical sensitivity in HPLC requires configuring optical and mass spectrometry hardware to minimize noise while maximizing signal capture.
Hardware Variable | Impact on Sensitivity (S) | Impact on Baseline Noise (σN) | Optimization Strategy |
|---|---|---|---|
Optical Path Length (b) | Proportional signal gain (A = σ *b *c) | Minor increase in stray light | Use extended path length flow cells (10mm -50mm Total Internal Reflection cells). |
Flow Cell Volume | High volume reduces band broadening | Excessive cell volume causes extra-column dispersion | Match flow cell volume to peak volume. |
Detection Wavelength (λ) | High extinction (ϵ) maximizes S | Mobile phase absorption increases noise | Select absorbance maximum away from solvent UV cutoff. |
Data Sampling Rate | Too low flattens peak heights | Too high captures high-frequency electronic noise | Set acquisition rate to capture 15 - 20 data points across the chromatographic peak. |
OPTIMIZING SENSITIVITY WORKFLOW
│
┌──────────────────────────────┼──────────────────────────────┐
▼ ▼ ▼
Enhance Signal Gain (S) Reduce Baseline Noise (σN) Sharpen Peak Morphology
│ │ │
┌────────┴────────┐ ┌────────┴────────┐ ┌────────┴────────┐
▼ ▼ ▼ ▼ ▼ ▼
Select Maximum Extend Path Degas Mobile Phase Use Sub-2 µm Reduce Column ID Target k' 2 to 5
Wavelength λ_max Length (b) & Pulse Dampener Mixers/Filters (4.6 -> 2.1 mm) (Isocratic/Grad)
Summary and Transition to Series 2
Maximizing analytical sensitivity in HPLC requires balancing signal enhancement with noise reduction. By tuning optical path length, reducing extra-column dispersion, utilizing sub-2 μm stationary phases, and selecting valid ICH Q2(R2) LOD/LOQ estimation models, analytical laboratories can establish low detection limits that remain robust during routine operations.
