Alternating tangential flow filtration achieves cell retention in perfusion bioreactors through a hollow fiber membrane whose engineering determines every critical performance parameter: cell retention efficiency, permeate flux at high viable cell density, resistance to fouling from intracellular contents of lysed cells, and operational lifetime across weeks of continuous culture. The membrane pore architecture, fiber geometry, surface chemistry, and transmembrane pressure management define whether ATF delivers on its performance promise.
Key Takeaways |
|
|
|
|
|
This article covers the membrane mechanics and engineering design of ATF filtration for perfusion cell culture. For the upstream integration strategy, process intensification, and productivity context of ATF in biopharmaceutical manufacturing, see Integrating Alternating Tangential Flow (ATF) in Upstream Processing at Drug Discovery News. For the continuous purification context in which ATF-based perfusion feeds downstream operations, see Breaking the Downstream Bottleneck: Continuous Purification.
The Hollow Fiber Membrane: Architecture and Asymmetric Pore Design

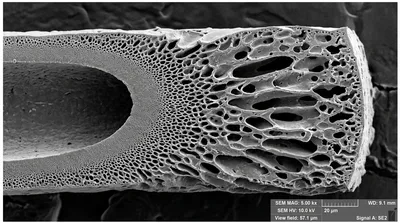

ATF hollow fiber membranes are asymmetric microfiltration membranes: the pore structure is not uniform through the fiber wall but transitions from a tight, small-pore skin layer at the lumen surface to a more open, large-pore sponge layer toward the outer shell. This asymmetric architecture places the primary size-exclusion barrier at the inner lumen surface, where it is in contact with the flowing culture and where ATF's alternating flow provides mechanical cleaning between pressure cycles.
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
The fiber geometry defines the operating envelope for every other performance parameter. Fiber inner diameter determines cross-flow velocity at a given volumetric flow rate and therefore the shear forces available to dislodge deposited material from the lumen surface during each flow cycle. Fiber length determines the total pressure drop from inlet to outlet along the lumen, which in turn determines the distribution of transmembrane pressure (TMP) along the fiber and the spatial distribution of permeate flux. Both parameters directly affect the rate and location of fouling.
Computational fluid dynamics modeling has confirmed the significance of fiber geometry on ATF performance. A CFD study of ATF hydrodynamics published in Biotechnology and Bioengineering quantifying Starling flow phenomena in ATF hollow fiber systems and validated that Starling flow, in which permeate flux distribution along the fiber length is non-uniform and influenced by the pressure gradient from inlet to outlet, plays a major role in the spatial distribution of fouling. Higher localized flux at fiber ends creates preferential fouling zones that limit the reusable life of the membrane even when mid-fiber regions remain relatively clean.
How Does Alternating Bidirectional Flow Prevent Fouling at the Membrane Surface?
The fundamental difference between ATF and conventional TFF is the periodic flow reversal that defines ATF operation. In standard TFF, feed flows unidirectionally through the fiber lumen, and retained cells and biological material accumulate progressively on the lumen surface as a compressive cake layer that increases hydraulic resistance over time. In ATF, the diaphragm pump alternates between pressure and exhaust cycles, driving fluid first in one direction then the other through the fiber lumen. The shear stress of the return flow disrupts the biological cake layer deposited during the forward stroke, partially resuspending retained material back into the bioreactor.
The mechanical cleaning effectiveness of the reverse flow cycle depends on the magnitude of the shear stress applied at the lumen surface during the exhaust stroke, which is determined by the cross-flow velocity in the fiber at the operating flow rate. Higher cross-flow velocity provides more effective fouling disruption but also applies higher shear forces to cells passing through the fiber lumen, potentially damaging cells and releasing intracellular contents that become additional fouling species.
Research comparing ATF and TFF in parallel perfusion runs has confirmed ATF's fouling advantage. A study in Biotechnology and Bioengineering demonstrating that wide-surface pore membranes improve sieving decay in perfusion culture confirmed that ATF showed lower product sieving decay than TFF operated at equivalent conditions, attributing the difference to the bidirectional action minimizing biological material deposit onto the hollow fiber membrane. The study also identified that the biological material primarily responsible for product sieving decay consists of particles in the twenty to two hundred nanometer size range, including extracellular vesicles, protein aggregates, and sub-micron cell debris, which are not removed from the culture by ATF operation but can be partially dislodged from the membrane surface by the reverse flow cycle.
Pore Size Selection for Cell Retention Across Modalities
Pore size is the primary membrane specification variable controlling cell retention efficiency. A 2024 study from AstraZeneca's BioPharmaceuticals Development team evaluating the effect of inner diameter, filter length, and pore size on hollow fiber filter fouling during perfusion cell culture confirmed that these geometric parameters independently affect both product sieving and hydraulic membrane resistance profiles, and that selection of the appropriate specifications for the specific cell type, density, and product is a critical process development decision rather than a default choice.
The table below summarizes the principal hollow fiber membrane specifications used in ATF perfusion cell culture applications, their operating characteristics, and the process conditions for which each is most appropriate.
Pore Size | Fiber ID (typical) | Primary Material | Cell Retention Application | Key Consideration |
0.2 micrometer | 0.5 to 1.0 mm | Polyethersulfone (PES); polysulfone | Standard CHO cell retention at densities up to fifty million cells per milliliter; most mammalian cell culture perfusion | Industry standard for mAb perfusion; provides complete cell retention; sufficient flux at standard perfusion rates; fouling progresses at very high cell density |
0.1 micrometer | 0.5 to 0.8 mm | PES; polysulfone | High-debris harvests; cultures with elevated cell lysis; viral vector production where capsid retention is also required | Lower permeate flux than 0.2 micrometer at equivalent TMP; higher operating pressure required; better retention of sub-micron debris and cell membrane fragments |
0.45 micrometer | 0.5 to 1.0 mm | PES; PVDF | Lower cell density cultures (up to twenty million cells per milliliter); CHO cell cultures with high product titers where maximum permeate flux is required | Higher flux than 0.2 micrometer; potential for cell or large debris passage at very high cell densities or poor viability; requires close TMP monitoring |
30 kilodalton MWCO (UF) | 0.5 to 0.8 mm | Regenerated cellulose; PES | Cell retention with simultaneous product retention in the bioreactor (intensified perfusion); where the product should not be continuously harvested in the permeate | Retains both cells AND protein product; permeate is cell-free and product-free; used when downstream continuous capture is not yet connected |
What Causes Membrane Fouling in High-Density Culture and How Can It Be Managed?
Fouling in ATF hollow fiber systems is multi-mechanistic: multiple distinct biological species deposit by different mechanisms at different locations within the membrane, and each requires a different management strategy.
Fouling Species | Mechanism | Process Indicator | Prevention and Management Strategy |
Cells and cellular aggregates | Size-based cake layer on lumen surface; compressive under transmembrane pressure; partially disrupted by reverse flow | Progressive TMP increase at constant permeate flux; recovery during exhaust cycle | Optimize ATF cycle frequency to maximize mechanical cleaning without increasing shear. Reduce operating permeate flow rate at very high cell densities. Confirm cell diameter relative to pore size is sufficient for size-based retention without forcing cells into pore throats. |
Extracellular vesicles and sub-micron debris (20-200 nm) | Size-similar to membrane pores; partial pore penetration and pore narrowing; identified as primary cause of product sieving decay | Progressive reduction in product sieving coefficient over time; TMP increase less dramatic than cell cake fouling | Select membrane pore size below the EV size range if product sieving loss is the primary concern. Wider surface pore membranes that exclude EVs at the surface without pore penetration have been shown to improve sieving maintenance. Manage culture viability to limit EV release. |
Secreted proteins and monoclonal antibody product | Adsorptive fouling on hydrophobic membrane surfaces; particularly PES membranes; reduces both product sieving and hydraulic permeability | Flux decline correlated with protein concentration; may recover partially on cleaning; reduced product yield in permeate | Select low-protein-binding membrane materials. Regenerated cellulose and modified PES with hydrophilic surface coatings show lower protein adsorption. Confirmed in scanning electron microscopy studies of lumen surface fouling deposits. |
Antifoam agents (cell culture media additives) | Antifoam micelles adsorb to the lumen surface and contribute to pore blockage; modeled as a combined cell-and-micelle fouling mechanism | TMP increase rate disproportionate to cell density; fouling faster than predicted from cell density alone | Minimize antifoam concentration; use antifoam-free or low-antifoam media formulations where possible. Published ATF fouling models confirm antifoam micelles have measurable sticking coefficients on membrane surfaces comparable to cells at high concentration. |
Transmembrane Pressure Management in ATF Operation
Transmembrane pressure in an ATF system is not a fixed value but a dynamic parameter that varies along the fiber length and between the pressure and exhaust phases of each cycle. Understanding the TMP distribution, rather than treating TMP as a single scalar setpoint, is essential for designing an operating protocol that preserves membrane performance across the duration of a continuous perfusion campaign.
During the pressure phase of each ATF cycle, the diaphragm pump pressurizes the fiber lumen from the pump end. The pressure at the pump-proximal end of the fiber is highest, driving permeate outward through the fiber wall at that end. At the pump-distal end of the fiber, pressure is lower, creating a local TMP that may be near zero or even negative in highly permeable membranes, leading to Starling flow re-entry of permeate through the fiber wall near the distal end. This non-uniform TMP distribution concentrates fouling at the proximal (pump-end) portion of the fiber where TMP is highest.
During the exhaust phase, the pump reverses, and the pressure gradient reverses across the fiber length. The region that was pump-proximal is now pump-distal, and the fouling disruption is most intense at the end of the fiber that received the most fouling during the pressure phase. This complementary disruption is the mechanical basis for ATF's fouling resistance compared to unidirectional TFF, but it is not a complete cleaning mechanism; some of the deposited material penetrates into pores and is not removed by shear alone.
In practical operation, TMP is controlled by adjusting the flow rate set on the ATF controller and the permeate flow rate set on the harvest pump. The TMP target, typically between 0.1 and 0.5 bar for standard CHO cell perfusion with 0.2-micrometer hollow fibers, should be maintained at the minimum required to achieve the target permeate flux. Operating above the minimum TMP needed for the required harvest rate increases fouling rate and reduces membrane operational lifetime without improving cell retention.
How Are ATF Membranes Monitored and When Should They Be Replaced?
ATF membrane performance is monitored through three parameters that together provide a complete picture of membrane condition: TMP at constant permeate flux (indicating hydraulic resistance), product sieving coefficient (indicating pore access for the product and smaller species), and cell retention efficiency (confirming that the membrane continues to retain cells completely).
TMP at constant flux is the most operationally accessible parameter because it is measured continuously by pressure sensors already present in the ATF system. A sustained upward trend in TMP at constant permeate flow rate indicates progressive fouling of the membrane surface and fiber wall. TMP rise is expected and acceptable within defined limits over the course of a perfusion campaign, but TMP that rises to the point where the ATF pump cannot maintain the required perfusion rate at acceptable pressure, or that exceeds the fiber wall pressure rating, signals membrane replacement.
Product sieving coefficient monitoring requires periodic sampling of the harvest permeate and the bioreactor retentate and measuring product concentration in each by protein assay or spectrophotometry. The sieving coefficient, calculated as the ratio of permeate concentration to retentate concentration, should remain close to one for a molecular weight product well below the membrane MWCO. A declining sieving coefficient indicates progressive pore narrowing from EV and sub-micron debris fouling, even when TMP remains within acceptable limits.
The integration of ATF membrane performance data with the bioreactor control system enables real-time visibility into both cell culture productivity and membrane condition within the same operational dashboard. For the upstream process integration perspective on how this data is used to optimize perfusion rate, cell density targets, and harvest scheduling, see Integrating Alternating Tangential Flow (ATF) in Upstream Processing at Drug Discovery News.
