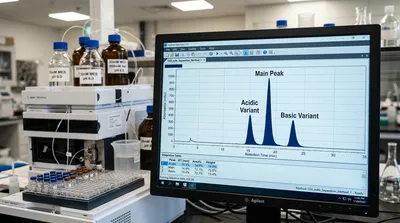

Cation exchange chromatography is the industry-standard analytical method for resolving the charge variant profile of monoclonal antibodies, separating acidic, main, and basic species based on differences in net surface charge that reflect post-translational modifications with direct consequences for potency, pharmacokinetics, and immunogenicity. Method selectivity, column selection, and gradient design determine whether charge variants are resolved with sufficient resolution for both regulatory submission and real-time process monitoring.
Key Takeaways |
|
|
|
|
|
For the broader advanced chromatography context in which CEX charge variant analysis and polishing operate, see Advanced Chromatography: Resins, Single-Use Skids, and Scale-Up. For the Protein A capture step whose eluate provides the starting material for CEX charge variant polishing, see Optimizing Protein A Chromatography for Complex Monoclonal Antibodies.
The Chemistry of Charge Heterogeneity in Monoclonal Antibodies
Monoclonal antibodies are basic proteins with isoelectric points typically between six and nine, reflecting the positively charged complementarity-determining region loops that interact with the negatively charged surfaces of their antigen targets. Post-translational modifications that alter the protonation state of surface-accessible amino acid residues, or that add or remove charged chemical groups, shift the overall surface charge distribution of the molecule and create the charge variant species detected by CEX.
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
A comprehensive 2024 analysis published in PLOS ONE characterizing charge heterogeneity of a monoclonal antibody binding both cation and anion exchange columns provides a detailed mapping of PTMs to acidic and basic variant categories. Modifications that increase the net negative charge or reduce the net positive charge at the CEX operating pH are classified as acidic variants; those that increase positive charge or reduce negative charge are classified as basic variants.
The distinction is analytical, not absolute: a modification classified as acidic because it shifts a species to earlier CEX elution under standard gradient conditions may not produce an isoelectric point shift detectable by isoelectric focusing. The CEX retention behavior reflects the local surface charge density accessible to the resin under the specific operating conditions, which may differ from the bulk charge distribution measured by other analytical methods.
Charge Variant Type | Post-Translational Modification | CEX Elution Position | Significance in mAb Development |
Acidic: deamidated forms | Asparagine deamidation to aspartate (Asn→Asp) or glutamine to glutamate (Gln→Glu); introduces one additional carboxylate group per event | Earlier than main peak; degree of shift proportional to number of deamidation events | Deamidation in CDR regions can reduce binding affinity to antigen; a stability risk in CDRs with Asn-Gly or Asn-Ser sequence motifs that promote deamidation |
Acidic: sialylated glycoforms | Addition of sialic acid (N-acetylneuraminic acid) to N- or O-linked glycan chains; each sialic acid residue carries one negative charge at physiological pH | Earlier than main peak; high sialylation produces broad early-eluting shoulder | Sialylation affects serum half-life via interaction with asialoglycoprotein receptors; heavily sialylated species may show different pharmacokinetics |
Acidic: glycated forms | Non-enzymatic glycation of Lys residues by reducing sugars (Maillard reaction); neutral modification that redistributes surface charge by blocking Lys amino groups | Variable; often co-elutes with deamidated forms or produces a broad acidic shoulder | Process-dependent; elevated glucose in fed-batch processes increases glycation. May affect antigen binding if Lys residues are in the CDR or near the paratope |
Acidic: N-terminal pyroglutamation from Gln | Cyclization of N-terminal glutamine to pyroglutamate; removes the free amino group at the N-terminus, reducing net positive charge by one unit | Earlier than main peak; typically a major acidic variant in mAbs with N-terminal Gln on the heavy or light chain | Generally considered a stable non-immunogenic modification; extent is controlled by cell culture conditions and may require specification limits if it varies between lots |
Basic: C-terminal lysine | Incomplete removal of the C-terminal lysine from the heavy chain by carboxypeptidase activity during production; each uncleaved Lys adds one positive charge | Later than main peak; species with both heavy chains containing C-terminal Lys (K2 form) elute later than the single-Lys form (K1) | Very common; most mAbs show a mixture of K0, K1, and K2 forms. C-terminal Lys does not affect antigen binding or effector function and is typically well-characterized rather than tightly controlled |
Basic: succinimide intermediates | Formation of a cyclic succinimide intermediate from Asp or Asn residues; net loss of one water molecule and one charge unit relative to Asp, producing a species that is slightly more basic | Later than main peak; can overlap with C-terminal Lys species depending on molecular context | Chemically unstable intermediate that can hydrolyze to Asp or isoAsp; if present at significant levels, requires stability monitoring and may indicate a formulation or storage pH concern |
Basic: Asp isomerization to isoAsp | Isomerization of Asp to isoAsp via succinimide intermediate; creates a backbone insertion that alters the local conformation and may expose a positively charged surface | Later than main peak; often co-elutes with succinimide forms | IsoAsp formation in CDR loops can reduce antigen binding affinity; a critical quality concern in CDR sequence motifs that contain Asp-Pro or Asp-Gly sequences prone to isomerization |
How Does CEX Resolve Charge Variants at the Molecular Level?
Cation exchange chromatography at the operating pH of most charge variant methods (typically 5.5 to 6.5 for analytical applications) retains monoclonal antibodies through electrostatic interactions between the positively charged protein surface and the negatively charged sulfonate or carboxylate ligands of the stationary phase. Charge variants differ from the main species in their net positive charge density at the operating pH, which determines the strength of their interaction with the resin and their resulting elution position under gradient conditions.
The operating pH is critical. Below the antibody pI (typically 6 to 9 for IgG), the molecule carries a net positive charge and binds the cation exchanger. The strength of binding increases as the molecule's pI exceeds the operating pH by a greater margin. Because charge variants differ by the introduction or removal of one to several charged groups from specific sites on the molecule, their effective pI values differ by fractions of a pH unit from the main species, creating the small differences in CEX retention time that the analytical method must resolve.
Temperature affects CEX selectivity by altering both the mobile phase buffer equilibria and the dynamics of protein-resin interaction. Increasing column temperature from room temperature to thirty-five or forty degrees Celsius is a common method optimization strategy that reduces peak width, improves resolution, and can separate variants that co-elute at ambient temperature. The temperature dependence of selectivity is molecule-specific and should be evaluated empirically during method development.
Column Selection for Charge Variant Analysis
Strong vs. Weak Cation Exchange Stationary Phases
The choice between strong and weak cation exchange stationary phases has practical implications for pH gradient method development. Strong cation exchangers based on sulfonate groups maintain constant negative charge across a wide pH range, providing consistent retention behavior as the eluent pH changes during a pH gradient. Weak cation exchangers based on carboxylate groups have a charge density that varies with pH, which can introduce non-linear retention behavior during pH gradient elution and complicate method optimization.
For salt gradient methods, both strong and weak cation exchangers provide acceptable performance, with weak cation exchangers sometimes offering different selectivity for specific charge variant pairs. For pH gradient methods, strong cation exchanger columns are generally preferred because their constant charge density simplifies the relationship between pH and retention time.
Columns Used in Charge Variant Analysis
Several dedicated CEX columns have been optimized for mAb charge variant analysis. The Dionex ProPac WCX-10, a weak cation exchange column, was the classical industry standard for charge variant analysis using salt gradient methods with MES and sodium phosphate mobile phases at pH 5.6 to 8.0. Strong cation exchange columns including the YMC-BioPro SP-F, used in studies such as the 2022 characterization of acidic mAb charge variants by WCX and LC-MS, operate at thirty-six degrees Celsius with sodium chloride gradients and have become widely used for analytical and semi-preparative applications. Waters BioResolve SCX mAb and Thermo MAbPac SCX-10 are newer columns specifically developed for mAb charge variant analysis with high resolution and compatibility with both salt and pH gradient methods.
For guidance on SEC column selection in the context of the complementary aggregate quantitation methods that are typically run alongside CEX charge variant analysis in analytical QC workflows, see the essential SEC column selection guide for biopharma analysts.
When Should pH Gradient Methods Be Used Instead of Salt Gradients?
The choice between pH gradient and salt gradient CEX methods is one of the most consequential decisions in charge variant analytical method development, with implications for resolution, robustness, laboratory equipment requirements, and compatibility with downstream MS detection.
Salt Gradient Methods
Salt gradient methods apply an increasing ionic strength to displace the mAb from the resin surface, progressively weakening the electrostatic interaction as the concentration of competing cations (typically sodium) increases. Mobile phase preparation is straightforward, and the method translates readily between laboratories and instrument platforms. The primary limitation is selectivity: salt gradients resolve charge variants based primarily on differences in total binding affinity to the resin, which may not provide sufficient resolution of closely related species that differ by a single charge modification at similar surface locations.
pH Gradient Methods
pH gradient methods increase the eluent pH from below to near the antibody pI, progressively reducing the molecule's net positive charge until it no longer binds the cation exchanger. Because each charge variant has a slightly different pI, they elute in order of increasing pI across the pH gradient. This mechanism is more directly connected to the fundamental charge differences between variants and generally provides better resolution for closely related species. A 2019 study establishing a direct injection pH gradient CEX method for cell culture process monitoring demonstrated that pH gradient methods can be applied to unpurified cell culture supernatant, providing real-time monitoring of charge variant formation during the production process rather than requiring offline purification before analysis.
The practical requirements of pH gradient methods are more demanding than salt gradients. The pH transition must be calibrated and reproducible between runs, which requires either pre-mixed buffer gradients or a system capable of generating accurate pH transitions from component solutions. System dead volume and mixing precision are more critical because small errors in the pH gradient profile translate to retention time shifts that can complicate peak assignment and quantitation. Columns with strong cation exchange chemistry, which maintain constant charge independent of pH, are preferred for pH gradient methods.
CEX Method Comparison
Parameter | Salt Gradient CEX | pH Gradient CEX |
Elution mechanism | Competing cations displace the mAb from the resin by reducing effective electrostatic binding | Increasing pH reduces the mAb's net positive charge until resin binding is no longer thermodynamically favorable |
Typical resolution of closely related variants | Moderate; variants with similar overall charge but different local distributions may co-elute | Generally higher; separation is based on pI differences which are more sensitive to individual charge modifications |
Mobile phase preparation | Simple; standard buffers (MES, phosphate) with NaCl; stable and reproducible | More complex; requires accurate pH gradient generation; volatile buffers (ammonium acetate, ammonium bicarbonate) required for MS compatibility |
Stationary phase recommendation | Compatible with both strong and weak cation exchangers; weak CEX offers different selectivity options | Strong cation exchanger preferred; constant ligand charge across pH range provides linear retention behavior |
MS compatibility | Limited; sodium-based mobile phases suppress ionization and contaminate the MS source | High; ammonium acetate pH gradient mobile phases are volatile and compatible with native MS; enables direct CEX-MS hyphenation |
Primary application | QC release testing in laboratories without dedicated pH gradient control; process monitoring where established method precision is prioritized over resolution | Discovery and development-stage characterization; process monitoring by direct injection from cell culture; CEX-MS structural attribution workflows |
Identifying Charge Variant Species: From CEX Fractionation to CEX-MS
Knowing that a mAb has an acidic variant population representing fifteen percent of the charge profile is useful specification data. Knowing that the fifteen percent acidic population consists of forty percent deamidated Asn-388 in the CDR3 loop, thirty percent N-terminal pyroglutamation, and thirty percent sialylated glycoforms is the actionable process development information that enables targeted intervention. Attribution requires moving from quantitative CEX peak area data to structural identification of the specific modifications present in each fraction.
Classical Fractionation and LC-MS Characterization
The classical approach collects CEX fractions from multiple preparative injections, performs buffer exchange by size exclusion chromatography or ultrafiltration to remove the CEX mobile phase, and analyzes each fraction by LC-MS at the intact, subunit, or peptide map level. Intact mass analysis identifies charge variants by total molecular weight shift; subunit analysis after IdeS digestion identifies the specific heavy chain or light chain carrying the modification; and peptide map analysis by middle-down or bottom-up approaches localizes the modification to a specific residue.
This workflow is technically comprehensive but time-intensive. Buffer exchange by SEC introduces dilution and potential degradation of unstable variants such as succinimide intermediates. Multiple LC-MS analyses of each fraction increase instrument time requirements per mAb characterization campaign. For a program with multiple charge variant fractions across several pH gradient CEX peaks, a full characterization campaign may require three to five days of MS instrument time.
CEX Coupled Directly to Native Mass Spectrometry
Direct coupling of CEX to native mass spectrometry, using volatile ammonium acetate-based pH gradient mobile phases, allows structural attribution of each charge variant peak in real time during the separation run. A 2025 publication in mAbs combining ion-exchange chromatography with native mass spectrometry for charge variant and proteoform analysis demonstrated the combination of salt and pH gradient strategies with native MS detection to simultaneously separate and structurally characterize charge variants of ten different mAb samples, confirming that CEX-MS enables comprehensive charge variant characterization across diverse mAb formats in a single analytical platform.
CEX-MS operates under the same column and gradient principles as UV-detected CEX, with the constraint that mobile phase components must be volatile. Sodium chloride and sodium phosphate, used in salt gradient methods, are incompatible with MS detection because they suppress ionization and contaminate the ion source. Ammonium acetate and ammonium bicarbonate-based buffers, which are volatile and MS-compatible, must be used instead, and the salt gradient profile is re-optimized for the different ionic strength characteristics of ammonium-based buffers.
The native MS detection mode preserves non-covalent complexes and detects intact mAb species at molecular weights above one hundred kilodaltons, providing information about glycoform distribution, chain association, and ligand binding that is not available from denatured MS approaches. For charge variant characterization, native MS identifies the mass shift associated with each peak and distinguishes between modifications of different masses that produce similar chromatographic retention behavior but are not resolved by the CEX column.
How Does Analytical CEX Translate to Preparative Polishing?
The CEX resin chemistry used in analytical charge variant profiling is directly applicable at preparative scale for charge variant reduction in the downstream polishing train. The objective in preparative polishing is different from analytical resolution: rather than separating every charge variant species into a distinct measurable peak, preparative CEX must reduce the total acidic or basic variant content of the drug substance pool to within the defined specification limits while recovering the maximum possible yield of the main species.
This difference in objective drives a difference in operating conditions. Analytical methods use dilute sample loads and shallow gradients that maximize resolution. Preparative polishing methods use high column loading factors and more rapid gradient profiles that maximize capacity and processing throughput at the expense of resolution. The selectivity available at high loads, where the protein concentration at the resin surface during the loading phase may exceed the column capacity and cause peak splitting into flow-through and bound fractions, is fundamentally different from the selectivity of analytical low-load conditions.
For the specific mixed-mode polishing step that is frequently applied after CEX polishing to address impurities that co-elute with the main species under ion exchange conditions alone, see Mixed-Mode Chromatography: Tackling Challenging Impurities. For the single-use skid considerations relevant to implementing CEX polishing in a GMP manufacturing facility, see The Rise of Single-Use Chromatography Skids in GMP Manufacturing.
The regulatory expectation for charge variant control is established through ICH Q6B specifications for biotechnological products, which require that charge heterogeneity be characterized, monitored across multiple product lots, and controlled to limits that have been qualified for safety and efficacy. The specification limits for each charge variant category are established based on the range of values observed across clinical lots and the results of comparative studies between fractions enriched in individual charge variant types and the main species.
