Peptide separations—particularly for GLP-1 receptor agonists such as semaglutide and tirzepatide—pose distinct chromatographic challenges compared with small-molecule assays.
These therapeutics are large, amphipathic, and prone to complex degradation pathways, resulting in impurities that differ by only minor structural variations. Achieving adequate critical pair resolution without compromising method robustness or resorting to extreme UHPLC pressures remains a persistent bottleneck in pharmaceutical laboratories.
Core-shell particle technology (also known as superficially porous particles, or SPP) offers a practical, thermodynamic solution. By addressing the fundamental terms of the Van Deemter equation, these columns deliver sharper peaks and higher peak capacity. For analysts performing GLP-1 impurity profiling, understanding the physics behind core-shell performance is essential for rational method development.
The Kinetic Mechanism: Minimizing Diffusion

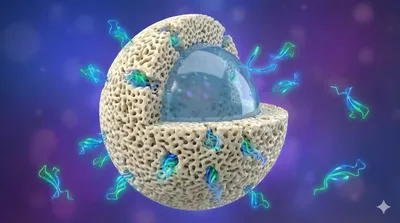

Core-shell particles consist of a solid, impermeable inner silica core surrounded by a porous outer shell. Unlike fully porous particles (FPP), which require analytes to diffuse through the entire particle diameter, core-shell designs significantly alter the diffusion path.
From a chromatographic theory perspective, SPPs improve performance by optimizing the A-term and C-term of the Van Deemter equation
Google Gemini
- Reduced Eddy diffusion (A-Term): The uniform particle size distribution and packing density of core-shell columns reduce the multipath dispersion of analyte molecules as they travel through the bed.
- Optimized mass transfer (C-Term): The solid core impedes deep-pore diffusion. Peptide molecules only interact with the thin porous shell (typically 0.5–0.6 µm thick). This reduces the distance the molecule must travel to interact with the stationary phase, thereby significantly accelerating mass-transfer kinetics.
The Result: Lower plate height (H) and higher efficiency (N) at standard flow rates, allowing analysts to achieve "UHPLC-like" performance on standard HPLC systems or extreme resolution on UHPLC systems.
Resolution Implications for GLP-1 Impurities
GLP-1 analogs produce dense impurity profiles. Analysts must separate the main peak from closely eluting species such as:
- D-amino acid isomers: Stereoisomers that often co-elute on standard C18 phases.
- Oxidation variants: Methionine or Tryptophan oxidation products.
- Deamidated forms: Hydrolysis of Asn/Gln side chains.
These variants often differ by only a few Daltons or by subtle shifts in hydrophobicity. Core-shell columns improve resolution (Rs) primarily by reducing peak width (ω). Since Rs ∝ 1/ω, even a modest reduction in band broadening significantly improves the separation of critical pairs.
Furthermore, sharper peaks equate to taller peaks. This increases the signal-to-noise (S/N) ratio, allowing for more accurate integration of trace impurities (0.05% – 0.1% levels) required for regulatory reporting.
Sensitivity vs. Loadability: A Crucial Distinction
A common misconception is that core-shell particles allow for higher mass loading than FPPs. In reality, because the solid core reduces the total available surface area (and thus carbon load), SPPs generally have lower sample loading capacity than fully porous equivalents.
However, for analytical impurity profiling, this is rarely a detriment. The kinetic advantages of SPPs compensate for the lower surface area in two ways:
Concentration sensitivity: Because the peaks are narrower, the analyte is more concentrated in the detector cell, increasing sensitivity despite lower loading.
Tall peak shape: In high-throughput screening or stability indicating methods (SIM), the ability to maintain peak symmetry at fast flow rates is more valuable than total carbon load.
Note: For preparative isolation of peptides, fully porous particles remain the standard due to their higher loading capacity.
Method Robustness and Transferability
In a GMP/GLP environment, ease of transfer is paramount. Core-shell columns utilize standard particle sizes (for example, 2.7 µm or 5 µm) that generate significantly lower backpressure than sub-2 µm fully porous particles.
This creates a "sweet spot" for method transfer:
- Backpressure flexibility: A method developed on a 2.7 µm core-shell column can often be run on both 400-bar HPLC systems and 1000+ bar UHPLC systems with minimal modification.
- Frictional heating: The solid core transmits heat better than porous silica, reducing radial thermal gradients that can cause band broadening at high flow rates.
This robustness reduces the risk of system overpressure alarms and shifts in retention time when methods transition from R&D to QC laboratories.
Column Selection Tips for GLP-1 Peptides
To maximize the efficacy of core-shell columns for peptides like Semaglutide (~4.1 kDa) or Tirzepatide (~4.8 kDa), analysts should consider the following parameters:
Pore Size Selection
While 300 Å is the traditional standard for "proteins," GLP-1 peptides are relatively small.
- 160 Å (or 120–160 Å): Often ideal for GLP-1s. It provides a larger surface area than 300 Å (enhancing retention and selectivity) while remaining large enough to prevent restricted diffusion.
- 300 Å: Best reserved for larger proteins, pegylated peptides, or very hydrophobic aggregates.
Ensuring the correct pore diameter prevents restricted diffusion effects (broadening) while maximizing the surface area available for the separation.
Stationary Phase Chemistry
The choice of bonded phase dictates the selectivity (α) of the separation, offering analysts multiple tools to manipulate retention:
- C18: The workhorse for general reversed-phase separation.
- C4 or C8: Useful if the peptide is extremely hydrophobic and retains too strongly on C18.
- ES-C18 / Polar Embedded: Critical for differentiating deamidated species or when using lower % organic starts to capture early eluting fragments.
While C18 is the standard starting point, keeping alternative chemistries available is essential for resolving stubborn critical pairs during method optimization.
Mobile Phase Compatibility
Ensure that the bonded phase remains stable under the acidic conditions typical of peptide mapping (0.1% TFA or Formic Acid). Sterically protected bonded phases are recommended to prevent ligand hydrolysis at low pH.
Conclusion: Practical Gains in the Laboratory
Core-shell particle technology offers a powerful, thermodynamically driven upgrade for peptide analysis. By narrowing peaks through reduced diffusion paths and preserving robustness via manageable backpressures, these columns help analytical chemists tackle the resolution challenges inherent to GLP-1 therapeutics.
Analysts are encouraged to screen core-shell formats (specifically 2.7 µm particles with 160 Å pores) early in method development to future-proof their impurity profiling methods.
