PFAS methods ask a single LC-MS/MS workflow to measure compounds with wide differences in polarity, chain length, and fragmentation behavior. Long-chain PFAS may retain well but create carryover. Shorter compounds can elute close to the solvent front, where matrix interference and system background become difficult to separate from the sample response.
Method development must balance four connected elements: chromatographic retention, background control, MRM detection, and matrix performance. Optimizing one element without testing the others can improve sensitivity while weakening identification or quantitative reliability.
Begin With the Analytical Objective
A compliance method provides the required framework. EPA Method 1633A, for example, specifies 40 target compounds, example transitions, identification criteria, and chromatographic performance requirements for several environmental matrices.
Research and monitoring projects may pursue a wider target list. Adding ultra-short-chain PFAS can change the method’s chromatographic requirements because these compounds behave differently from many established targets.
Before selecting a column, laboratories should define:
- Target analytes and relevant isomers
- Sample matrices
- Required reporting limits
- Identification criteria
- Calibration and labelled-standard strategy
- Acceptable run time
- Regulatory restrictions on method modification
These decisions define what the LC-MS/MS method must achieve.
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
Select the Column Around the Target Range

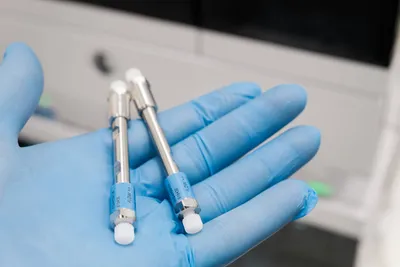

Reversed-phase C18 columns support many established PFAS methods. They provide useful retention and separation for short- through long-chain compounds, but they may not retain the smallest, most polar PFAS.
Column evaluation should consider more than peak intensity. Laboratories need stable retention times, acceptable peak shape, and separation from known interferences. The stationary phase must also support the required isomer treatment and labelled-standard pairing.
The challenge grows when the target list spans ultra-short- through long-chain PFAS. Direct-injection LC-MS analysis across this chain-length range demonstrates the value of a unified method, but expanding coverage can force compromises in retention, mobile-phase conditions, and sensitivity.
Alternative selectivities may help retain highly polar analytes. Polar interactions and system design can bring C1–C3 compounds into a measurable chromatographic range.
Separate System Background With a Delay Column
PFAS can enter the mobile phase from solvents, reagents, and LC components. During equilibration, these contaminants may accumulate at the head of the analytical column and later appear in the chromatogram.
A delay column installed upstream of the injector retains system-derived PFAS so that they elute after the corresponding compounds introduced with the sample. This creates a time separation between background and sample peaks.
The delay column does not remove contamination or compensate for poor blanks. It makes the source easier to distinguish. Laboratories still need to verify solvents, reagents, and components and investigate changes in background response.
Delay-column performance depends on the complete LC configuration. The laboratory should confirm that the setup separates background peaks without altering gradient delivery, retention-time stability, or target recovery.
Develop MRM Transitions for Identification
MRM detection provides selectivity by monitoring a precursor ion and one or more product ions. Laboratories typically use the strongest suitable transition for quantitation and another transition for confirmation where reliable fragmentation allows it.
Some PFAS produce limited fragments. Method 1633A recognizes that several compounds lack a secondary transition with sufficient signal for routine ion-ratio calculations. In these cases, retention time, labelled standards, blank control, and signal-to-noise criteria carry more weight in identification.
Transition development should evaluate:
- Precursor and product-ion selection
- Collision energy
- Quantifier and qualifier response
- Ion ratios across the calibration range
- Dwell time and points across each peak
- Interferences in standards and matrix extracts
The final acquisition method must collect enough data points to define each chromatographic peak. Adding transitions without adjusting scheduling or dwell time can reduce precision rather than improve confirmation.
Use Retention Time as an Identification Control
Retention time provides an independent check on MRM response. Method 1633A requires target and labelled compounds to fall within defined windows based on calibration standards. Targets with exact isotopically labelled analogues must also coelute within a tighter interval.
Method development should establish these windows using standards that represent the relevant linear and branched isomers. A narrow window can exclude legitimate isomer peaks, while a broad window weakens selectivity.
Retention must remain stable across standards, blanks, and matrix extracts. Shifts can indicate column deterioration, mobile-phase differences, matrix loading, or a change in system conditions.
Separate PFOS From Bile-Salt Interference
Some biological and environmental matrices contain bile salts that can interfere with PFOS measurement. Method 1633A requires chromatographic separation between the bile-salt interference region and the retention-time window for linear and branched PFOS isomers.
This requirement shows why sensitivity alone cannot define method performance. An intense PFOS transition provides little value if a matrix compound generates a response in the same window.
The laboratory should test known interference standards during development and throughout routine analysis. If an interference overlaps the target window, the method needs a chromatographic change rather than a data-processing workaround.
Measure Matrix Effects Across the Method Scope
Matrix components can suppress or enhance electrospray response. The effect may differ by analyte, retention time, and sample type, meaning that a method validated in reagent water may perform differently in wastewater, biosolids, or food.
Isotopically labelled standards help track extraction losses and response changes. Exact analogues provide the closest correction, while surrogate labelled compounds may not reproduce the behaviour of every associated target.
Laboratories should assess matrix effects using representative samples rather than one convenient blank matrix. Useful evidence includes labelled-standard recovery, matrix spikes, post-extraction spikes, dilution response, and comparison with solvent standards.
Matrix problems may require changes to extraction, cleanup, chromatography, or injection volume. Two-dimensional LC-MS in PFAS food testing provides one approach to separating analytes from co-extracted material before detection.
Consider Alternative Separation Techniques
Reversed-phase LC does not provide the best solution for every PFAS target. SFC-MS/MS for ultra-short-chain PFAS offers an alternative when conventional LC struggles to retain the smallest compounds.
An alternative technique must still meet the project’s requirements for recovery, identification, calibration, precision, and reporting limits. Laboratories should also consider whether the method needs separate workflows for regulated and emerging targets.
A single broad method may simplify sample handling, while separate methods can provide stronger performance for distinct chemical groups. The best choice depends on the target list and reporting objective.
Test the Complete Workflow
A method does not succeed because a standard produces clean peaks. It must maintain performance across samples, blanks, calibrations, and quality controls.
The final development study should challenge background, retention, ion ratios, labelled-standard recovery, carryover, matrix effects, and calibration stability. It should also test different analysts, reagent lots, and sample types within scope.
Robust PFAS LC-MS/MS methods use chromatography to distinguish the target from both system background and matrix interference. The mass spectrometer then confirms and quantifies a peak that the separation has already made defensible.
