Integrating membrane filtration technologies into biopharmaceutical manufacturing workflows requires matching each membrane format to the specific processing requirements of the unit operation it serves. The wrong membrane selection at any step affects not only the performance of that step but the quality of the feed stream delivered to every downstream unit operation that follows.
Key Takeaways |
|
|
|
|
|
For the operating principles of each membrane filtration technology introduced here, and their role in the full bioprocess filtration continuum, see The Modern Bioprocess Filtration Playbook.
Hollow Fiber vs. Flat-Sheet Cassette: Understanding the Format Trade-Offs

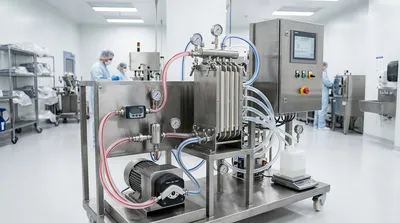

Hollow fiber TFF modules consist of bundles of small-diameter porous tubes through which the feed flows while permeate passes radially outward through the fiber walls. Flat-sheet cassette TFF systems stack membrane sheets separated by feed and permeate channel screens in a parallel flow path. Both achieve the same tangential flow principle but differ in the specific performance characteristics that determine their suitability for different applications.
Characteristic | Hollow Fiber | Flat-Sheet Cassette |
Hold-up volume | Low; favorable for clinical-scale operations where product recovery from hold-up volume is critical | Higher; commercial-scale hold-up is manageable, but clinical-scale applications require design attention for product recovery |
Flux performance at high protein concentration | Lower; fiber lumen diameter constrains cross-flow velocity at high viscosity, reducing shear at membrane surface | Higher; wider channel and screen-induced turbulence maintain effective shear at higher viscosities; preferred for high-concentration products |
Single-use suitability | High; hollow fiber modules are available as single-use formats with low per-unit cost at clinical scale | Moderate; single-use cassette formats are available but at higher per-unit cost; reusable at commercial scale is common |
Scalability | Linear with number of fibers; can be challenging to achieve consistent performance across lots due to fiber bundle variability | Linear with cassette stack area; well-characterized scale-up at equivalent TMP and cross-flow velocity per membrane area |
Best fit | Clinical-scale concentration and diafiltration; viral vector UF/DF; applications requiring low product loss | Commercial mAb formulation; high-concentration products; operations requiring high membrane area per system footprint |
How Is TFF Membrane Area Sized for Concentration and Diafiltration?
TFF membrane area sizing begins with defining the processing constraint: is the operation limited by time (it must complete within a defined production schedule window), by product characteristics (the product viscosity at the target concentration limits achievable flux), or by membrane capacity (the total volume that can be processed before membrane performance degrades)?
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
A practical sizing approach uses the flux at the target operating TMP, measured in a scale-down experiment at the target feed concentration, to calculate the area required to achieve the target processing volume or concentration factor within the time constraint. The flux at concentration is typically lower than the flux at the starting feed concentration because increasing protein concentration increases viscosity and the magnitude of concentration polarization at the membrane surface. Accurately characterizing flux behavior across the full concentration range from starting to target concentration is therefore essential for reliable area sizing.
The validation framework for TFF operating parameters, including the design space for TMP, cross-flow velocity, and feed concentration that maintain product quality, follows the FDA Process Validation: General Principles and Practices guidance lifecycle approach. Process characterization at scale-down, followed by verification at manufacturing scale, is the expected validation strategy for TFF unit operations in GMP drug substance manufacturing.
Single-Pass TFF: Enabling Continuous Downstream Integration
Single-pass tangential flow filtration achieves concentration in a single pass of the feed stream through a series of membrane modules connected in series, without retentate recirculation. By increasing the path length through which the feed travels, SPTFF achieves the same volume reduction as batch TFF but without requiring a recirculation loop and hold tank. This architecture makes SPTFF uniquely suited for inline concentration of process streams within continuous manufacturing trains where eliminating hold tanks is a design objective.
The operating principle of SPTFF requires that flux be controlled below the critical flux level, above which concentration polarization becomes self-reinforcing, and membrane performance degrades rapidly. At subcritical flux, the convective transport of retained molecules to the membrane surface is balanced by back-diffusion, maintaining a stable concentration polarization layer that allows sustained operation across the full processing volume. The critical flux for any product must be determined experimentally as it depends on protein concentration, viscosity, membrane type, and channel geometry.
A 2026 review on membrane applications in bioseparation and downstream processing provides detailed guidance on the operating principles and application range of SPTFF in modern biomanufacturing, including its role in linking upstream and downstream operations in intensified continuous processes. The review is available from A*STAR Bioprocessing Technology Institute.
What Considerations Govern Membrane Selection for Novel Modalities?
Cell and gene therapy products, including adeno-associated viral vectors, lentiviral vectors, and lipid nanoparticles, require TFF membrane selection that differs substantially from monoclonal antibody applications. The molecular weight cutoffs appropriate for mAb retention (thirty kilodaltons) are too tight to allow efficient processing of viral vectors at one hundred kilodaltons to several megadaltons, requiring open UF membranes or even MF membranes depending on the vector size and the impurities to be removed.
For adeno-associated viral vectors, which range from approximately three to six megadaltons in capsid molecular weight, regenerated cellulose membranes with one hundred to three hundred kilodalton MWCO are typically used for concentration and diafiltration. These membranes allow passage of host cell proteins, DNA, and small molecules while retaining the viral capsid. The selection of membrane chemistry is also important for novel modalities: regenerated cellulose is preferred over polyethersulfone for viral vector applications because its hydrophilic surface exhibits lower non-specific binding of the viral capsid.
For the technical detail on HIC chromatography resin selection and purification chemistry relevant to ADC and bispecific antibody applications where filtration integrates with the chromatographic train, see Mastering Downstream Purification: Advanced Chromatography and Filtration in Biomanufacturing.
