Next-Generation Depth Filtration for High-Titer Biologics

Intensified upstream processes mean dirtier harvests. Here is how modern depth filtration is being redesigned to handle the load.

Written byTrevor J Henderson

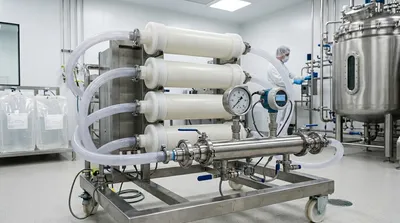

Depth filter housing assembly in series configuration in a GMP bioprocessing suite, showing capsule filters on a manifold with differential pressure monitoring.

High-titer biopharmaceutical harvests require depth filtration configurations that deliver both adequate throughput capacity and sufficient adsorptive impurity clearance. Series configurations combining a coarser primary grade with a finer secondary grade are increasingly standard for intensified processes.

Flow (2026)

Listen with Speechify

0:00

5:00

Depth filtration for mammalian cell culture harvest is no longer a passive clarification step designed around conventional fed-batch titers of one to three grams per liter. Intensified upstream processes delivering five to ten grams per liter at cell densities above thirty million cells per milliliter present filtration loads that standard filter area sizing, operating flux, and filter media selection cannot address without fundamental process redesign.

Key Takeaways

Depth filtration removes cells, cell debris, lipids, and colloidal particles through a combination of size-based retention and adsorptive interaction with the charged filter matrix. Both mechanisms must be preserved in filter sizing and flux selection for high-titer and high-density harvests.

Process intensification has fundamentally changed the depth filtration challenge. Higher cell densities generate more cellular debris, more intracellular host cell proteins from lysed cells, and higher turbidity that reduces filter capacity by two- to threefold compared to conventional fed-batch harvests at equivalent volume.

Operating flux is a clearance design decision as well as a capacity decision. Lower flux rates allow greater contact time between the feed stream and the charged filter matrix, achieving higher adsorptive HCP and DNA clearance. High-flux operation sacrifices adsorptive clearance and increases impurity load on downstream operations.

Series filter configurations combining a coarser primary grade with a finer secondary grade improve total throughput capacity by distributing the biomass load across multiple filter layers rather than allowing a single grade to plug prematurely under high-titer conditions.

Flocculation pre-treatment, using polyelectrolytes or pH adjustment to aggregate colloidal particles before filtration, can reduce depth filter area requirements by thirty to fifty percent for high-density perfusion harvests by removing the fine colloidal and sub-micron particle load that depletes adsorptive filter capacity rapidly.

For the filtration continuum context in which depth filtration operates, including its relationship to sterile filtration, TFF, and viral nanofiltration in the downstream train, see The Modern Bioprocess Filtration Playbook.

The Depth Filtration Mechanism: Size Exclusion and Adsorptive Retention

Depth filters retain particles through two complementary mechanisms operating simultaneously across the depth of the filter matrix. Size exclusion physically entraps particles larger than the tortuous pore channels throughout the fibrous or particulate bed. Adsorptive retention captures colloidal particles, soluble host cell proteins, DNA, and lipid vesicles through electrostatic and hydrophobic interactions between the particle surface and the positively charged filter matrix. A 2023 study from University College London and FUJIFILM Diosynth Biotechnologies characterized how both mechanisms contribute to clarification performance across a range of mAb harvest conditions, demonstrating that adsorptive clearance of host cell proteins is highly dependent on the contact time and conditions that allow electrostatic interactions to operate.

The relative contribution of each mechanism shifts with operating flux. At flux rates of one hundred to two hundred liters per square meter per hour, both mechanisms operate at their designed capacity. Above that range, the fluid velocity through the filter bed reduces contact time for adsorptive interaction, shifting the mechanism toward predominantly size-based retention and reducing HCP and DNA clearance per unit area. Understanding this flux-clearance relationship is the basis for depth filtration design in high-titer processes, where the instinct to increase area and maintain high flux may inadvertently sacrifice the adsorptive clearance the downstream train depends on.

Why Do High Cell Density Harvests Present a Different Filtration Challenge?

The challenge of filtering high cell density harvests is not simply one of increased volume. It is a fundamental change in the composition of the harvest stream that affects every mechanism by which depth filters achieve clarification. Harvests from intensified fed-batch processes at twenty to forty million cells per milliliter, and from perfusion processes at sixty to one hundred million cells per milliliter, contain qualitatively and quantitatively different impurity profiles than conventional fed-batch harvests at ten to fifteen million cells per milliliter.

Cell viability at harvest affects the composition of the clarification challenge. In intensified processes that push cells to higher peak densities, a greater fraction of cells may be in late-stage apoptosis at harvest, releasing intracellular contents including proteases, lipases, and nucleases that degrade both product and filter performance. The sub-micron colloidal particle fraction generated by lysed cells disproportionately consumes adsorptive filter capacity, reducing throughput capacity by two to three times compared to equivalent-titer conventional fed-batch harvests with higher cell viability.

Research published in Biotechnology and Bioengineering by Merck Research Laboratories in 2024 demonstrated that intensified fed-batch processes beyond ten percent cell solids have severely strained harvest operations, particularly depth filtration. Bioreactors containing high amounts of cell debris with more than forty percent of particles below ten micrometers in diameter were described as increasingly common, requiring predictive modeling tools to develop depth filtration processes that conventional empirical screening cannot address reliably.

Continue reading below…

Next-Generation Depth Filter Media: What Has Changed

Filter media technology has advanced substantially in response to the high-titer challenge. First-generation depth filters used diatomaceous earth and cellulose fiber with cationic surface treatments as the primary adsorptive matrix. Next-generation filter grades incorporate engineered inorganic adsorbers, modified synthetic fibers, and graded composite structures that achieve higher adsorptive capacity per unit area while maintaining the size-exclusion performance of the fibrous bed.

Charged inorganic adsorbers incorporated into modern depth filter grades provide higher surface area for electrostatic interaction per unit matrix volume, extending adsorptive capacity relative to conventional cellulose-based grades at equivalent bed thickness. Composite depth filters combining a depth filtration layer with an adsorptive polishing layer in a single housing achieve impurity clearance objectives in one step that previously required two separate housing stages.

Filter grade selection for high-titer applications requires empirical characterization at small scale using representative feedstock, since published manufacturer capacity data is typically generated with standard fed-batch harvests and may significantly overestimate capacity achievable with intensified process material.

Configuration	Capacity (relative)	HCP Clearance	Best Application
Single grade, high flux	Moderate; premature plugging risk from high biomass	Reduced; high flux limits adsorptive contact time	Conventional fed-batch harvests with moderate biomass and high cell viability
Single grade, optimized low flux	Higher; lower flux extends filter life	Good; increased contact time restores adsorptive mechanism	Moderate-titer feeds where clarification area is sufficient to operate at lower flux without excessive hold time
Series: coarse grade + fine grade	Highest; coarse grade extends life of fine polishing grade	Excellent; fine grade provides adsorptive polishing independent of coarse-grade load	High-titer and high-density harvests; intensified processes; any harvest with elevated sub-micron particle load
Flocculation + depth filtration	Very high; flocculation removes colloidal load before filter contact	Variable; depends on flocculant interaction with target impurity classes	Perfusion harvests with very high cell density and elevated intracellular impurity content; facilities where filter area is constrained

How Should Operating Flux Be Selected for High-Titer Processes?

Flux selection for depth filtration is a multi-objective optimization that balances throughput capacity, adsorptive clearance, and processing time. For conventional processes, manufacturers publish recommended flux ranges and capacity data. For high-titer intensified processes, these published values should be treated as starting points rather than design values, and process-specific characterization is required.

A practical characterization approach uses a small-scale constant flow experiment at three to five flux levels spanning the anticipated range, measuring both differential pressure progression and permeate turbidity and impurity content at each flux. A 2025 University of Kentucky study on depth filtration of viral vector harvest confirmed that lower flux operations at one hundred fifty liters per square meter per hour achieved greater than ninety percent DNA removal compared to high-flux operation at six hundred liters per square meter per hour, where adsorptive interactions were insufficient to retain DNA at the high throughput rate. This principle applies equally to mAb and other biologic harvests.

Continue reading below…

Scale-up from small-scale characterization to manufacturing scale uses constant flux scale-up (maintaining the same flux in liters per square meter per hour) with proportional increase in filter area. Differential pressure at manufacturing scale should be verified experimentally because of potential differences in feedstock lot-to-lot variability not captured in small-scale characterization.

Secondary Depth Filtration: Protecting the Downstream Train

A second depth filtration stage, operating on the effluent from primary clarification, removes residual fine particles, lipid vesicles, and colloids that pass the primary clarification step and would otherwise reach the sterile filtration or protein A chromatography step. Secondary depth filtration extends the operational life of the 0.22-micrometer sterile filter by removing the submicron particle load that causes sterile filter plugging, and reduces the impurity load on the protein A capture column by eliminating lipids that can foul the resin and reduce dynamic binding capacity.

For the complete context of how depth filtration integrates with sterile filtration and the downstream chromatography operations that follow it, see Mastering Downstream Purification: Advanced Chromatography and Filtration in Biomanufacturing. For the economics of choosing single-use versus reusable depth filter configurations, see the economics of single-use filtration paths.

This article was produced under Separation Science's AI Editorial Guidelines.

Frequently Asked Questions (FAQs)

Why Does Depth Filtration Fail Prematurely with High-Titer Harvests?
Premature depth filter plugging in high-titer harvests has two primary causes: physical overloading by the increased biomass of cells, cell debris, and large particles that exceed the physical retention capacity of the filter bed; and rapid exhaustion of the adsorptive capacity by the elevated concentration of sub-micron colloidal particles generated by lysed cells in high-density cultures. These colloidal particles, which include lipid vesicles, protein aggregates, and cell membrane fragments, have high surface-to-volume ratios and consume the cationic adsorption sites on the filter matrix disproportionately relative to their volume fraction. Both failure modes can be addressed by series filter configurations, lower flux operation, or upstream pre-treatment with centrifugation or flocculation.
What Is Flocculation and When Should It Be Used in Harvest Clarification?
Flocculation uses polyelectrolyte agents or pH adjustment to aggregate fine colloidal particles in the harvest into larger flocs that can be removed by centrifugation or captured more efficiently by coarse depth filter grades. It is most beneficial for perfusion harvests at cell densities above thirty million cells per milliliter, where the colloidal particle load generated by intracellular content release is high enough to exhaust adsorptive depth filter capacity prematurely. Flocculation can reduce depth filter area requirements by thirty to fifty percent by removing the sub-micron load before it reaches the depth filter. It requires careful selection of flocculant type and concentration to avoid introducing new impurities that would affect downstream purification.
How Is Depth Filter Scale-Up Performed?
Depth filtration scale-up uses constant flux as the primary scaling criterion, maintaining the same flux in liters per square meter per hour at manufacturing scale as characterized at small scale. Filter area is scaled proportionally with the volume of harvest to be processed. The total area required is determined from small-scale characterization of differential pressure progression versus loading volume at the target flux, identifying the maximum capacity in liters per square meter before the differential pressure limit is reached. A safety factor of twenty to thirty percent additional area is typically included to account for lot-to-lot feedstock variability.
What Is a Series Depth Filtration Configuration and Why Is It Used?
A series depth filtration configuration uses two or more filter grades in sequence, with a coarser primary grade capturing the bulk of the cellular debris and large-particle load, followed by a finer secondary grade for adsorptive polishing and fine particle removal. The coarser primary grade extends the operational life of the finer secondary grade by removing the large-particle load that would otherwise plug the finer matrix prematurely. Series configurations achieve higher total throughput capacity than a single fine grade alone, while delivering better adsorptive clearance than a single coarse grade alone.
