Predicting Chromatography Resin Lifetime With AI: Extending Performance and Reducing Cost

Resins are expensive, and replacing them too early wastes money while replacing them too late risks batch failure. Here is how machine learning turns that tradeoff into a prediction.

Written byTrevor J Henderson

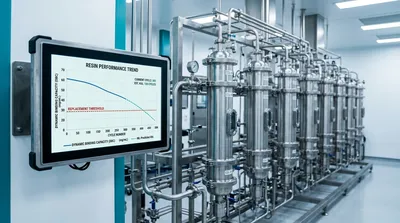

Monitoring dashboard showing a dynamic binding capacity decline trend across resin cycles, illustrating resin lifetime prediction with machine learning

Machine learning models forecast the remaining useful life of a resin from its performance trend, allowing retirement decisions to be made on data rather than a fixed cycle limit.

Flow (2026)

Listen with Speechify

0:00

7:00

Chromatography resin lifetime prediction with AI and machine learning addresses one of the most direct cost-and-risk tradeoffs in downstream bioprocessing. Affinity resins, Protein A above all, are among the most expensive consumables in a purification process, and every cycle of reuse improves process economics. But reuse carries risk: a resin run past its reliable performance can fail to clear impurities or lose yield, jeopardising a batch worth far more than the resin itself. Machine learning offers a way to replace conservative fixed-cycle limits and time-consuming offline testing with a data-driven forecast of how much useful life a resin has left.

This article covers how those predictions work: the degradation indicators models learn from, the modelling approaches, the data required, and the economic case. It sits within Separation Science's coverage of AI in process chromatography, and the broader AI in analytical science overview maps the wider landscape.


Key Takeaways Resin lifetime prediction is one of the most commercially compelling AI applications in downstream bioprocessing, because the cost of premature replacement versus batch failure makes the economic case direct and calculable. The measurable indicators of resin degradation are well characterised: dynamic binding capacity decline, pressure drop increase, ligand leaching, and changes in recovery and purity across cycles. Resin degradation has two distinct mechanisms: ligand hydrolysis and degradation versus fouling, and distinguishing them matters because they respond to different interventions. Machine learning and hybrid mechanistic models predict remaining useful life from performance trends, allowing retirement decisions based on forecast performance rather than a fixed cycle count. Model performance depends on consistent, long-horizon process data. Resin lifetime prediction is a data infrastructure problem as much as a modelling one.

Key Takeaways

Resin lifetime prediction is one of the most commercially compelling AI applications in downstream bioprocessing, because the cost of premature replacement versus batch failure makes the economic case direct and calculable.
The measurable indicators of resin degradation are well characterised: dynamic binding capacity decline, pressure drop increase, ligand leaching, and changes in recovery and purity across cycles.
Resin degradation has two distinct mechanisms: ligand hydrolysis and degradation versus fouling, and distinguishing them matters because they respond to different interventions.
Machine learning and hybrid mechanistic models predict remaining useful life from performance trends, allowing retirement decisions based on forecast performance rather than a fixed cycle count.
Model performance depends on consistent, long-horizon process data. Resin lifetime prediction is a data infrastructure problem as much as a modelling one.

Why Resin Lifetime Is Hard to Predict Manually

Resin lifetime is difficult to manage well precisely because the alternatives to prediction are both costly. A resin can, in principle, be retired at a fixed, conservative cycle number chosen to guarantee it never fails in service. It can also be characterised offline at intervals, pulling samples for binding capacity and performance assays. Both approaches work, and both waste something: the fixed limit discards resin that still had useful life, and the offline testing consumes time, material, and analyst effort while the process waits.

The underlying difficulty is that resin degradation is gradual, multi-causal, and dependent on the specific process. A resin does not fail suddenly at a predictable cycle; it declines along a trajectory shaped by the feed it processes, the cleaning regime it undergoes, and its storage between campaigns. Two columns of the same resin in different processes can have materially different useful lives, which is why a single manufacturer-quoted lifetime figure is a starting point rather than an answer. Predicting the trajectory for a specific process is exactly the pattern-recognition problem machine learning is suited to, provided the performance data exists to learn from.

A resin does not fail suddenly at a predictable cycle. It declines along a trajectory shaped by its feed, its cleaning regime, and its process. Predicting that specific trajectory is what machine learning does well.

Performance Indicators That Predict Resin Degradation

Effective lifetime prediction depends on tracking the right indicators, the measurable signals that collectively describe a resin's decline. A comprehensive review of predictive models for chromatography purification identifies the performance indicators that carry the most predictive weight, and understanding what each one signals is the foundation of any lifetime model.

The indicators that feed resin lifetime models:

Dynamic binding capacity decline. The most direct indicator: as a resin ages, the amount of product it can capture before breakthrough falls. In one cycling study of an alkali-stable Protein A resin, full protein-load cycling with sanitisation showed a DBC decrease of roughly 15 percent over the cycles tested, illustrating the gradual, measurable decline that models learn to project forward.
Pressure drop increase. Rising back-pressure across the column bed signals physical changes, bed compression, fouling, or fines generation that accompany chemical degradation and often precede performance failure.
Ligand leaching. Loss of the affinity ligand, detectable as elevated leached ligand in the product or as UV baseline changes, directly reduces binding capacity and is a hallmark of the hydrolysis-driven degradation pathway.
Recovery and purity trends. Declining product recovery or gradual erosion of impurity clearance across cycles are downstream consequences of degradation that also serve as model inputs, particularly where they can be linked to analytical results.

No single indicator tells the whole story. The value of a machine learning approach is in combining several indicators into a coherent trajectory, recognising that a modest DBC decline accompanied by rising pressure and ligand leaching describes a different, and more urgent, situation than a comparable DBC decline alone.

The Two Mechanisms of Resin Degradation

Understanding why a resin is degrading, not just that it is, matters because the two dominant mechanisms respond to different interventions. A mechanistic study of Protein A resin lifetime decoupled the two possible causes of performance decline: resin hydrolysis and ligand degradation on one hand, and resin fouling on the other. The distinction is practically important, because a resin losing capacity to ligand hydrolysis needs a different response than one losing capacity to accumulated fouling.

Continue reading below…

The two degradation pathways and what they mean:

Ligand hydrolysis and degradation. Repeated exposure to the sodium hydroxide used in cleaning and sanitisation gradually hydrolyses and degrades the affinity ligand, permanently reducing binding capacity. This is intrinsic chemical aging, influenced by caustic concentration, temperature, and the presence of stabilising additives, and it sets a hard ceiling on reuse.
Resin fouling. Accumulation of tightly bound species, host cell proteins, lipids, denatured product, that cleaning does not fully remove progressively occludes pores and reduces mass transfer. Unlike hydrolysis, fouling is potentially addressable through improved cleaning strategy, which is why distinguishing it from hydrolysis is valuable.

This two-mechanism picture is exactly what modern hybrid models capture. A quality-by-design study of Protein A resin fouling built a hybrid aging model with two separate parameters, one accounting for binding-capacity deterioration from ligand degradation, leaching, and pore occlusion, and another for decreased mass transfer rate caused mainly by fouling. Separating the mechanisms in the model gives insight into which pathway dominates under given process conditions, which in turn informs whether the right response is a cleaning change or resin replacement.

Machine Learning Approaches for Resin Lifetime Models

With the indicators and mechanisms established, the modelling question is how to turn cycle-by-cycle performance data into a forecast of remaining useful life. Several approaches exist, differing in how much they rely on mechanistic understanding versus learning purely from data.

The main modelling approaches:

Mechanistic degradation models. Kinetic models of ligand hydrolysis and fouling, parameterised from cycling data, describe the physics of degradation directly. They are interpretable and transfer across conditions where the parameters are known, but require the degradation chemistry to be well characterised.
Data-driven trend models. Machine learning models trained on historical performance-indicator trajectories learn to project decline and forecast when a resin will cross a performance threshold, without requiring an explicit degradation mechanism. They excel when abundant cycling data is available.
Hybrid aging models. Combining a mechanistic degradation backbone with a machine learning component, hybrid models capture the known degradation physics while learning process-specific deviations, and they are the direction most likely to generalise reliably across resins and processes.
Remaining useful life estimation. Borrowing from predictive maintenance in other industries, remaining-useful-life models frame resin lifetime as a prognostics problem, forecasting cycles-to-threshold with an associated confidence, which is directly actionable for campaign planning.

The consistent lesson from bioprocess modelling applies here too: hybrid approaches that combine mechanistic structure with data-driven learning tend to outperform either alone, particularly when process-specific data is limited, which it usually is for a resin that has only run a modest number of campaigns.

Data Collection Requirements: What to Track and for How Long

The binding constraint on resin lifetime prediction is almost always data, not modelling sophistication. A model can only learn a degradation trajectory it has been shown, which places specific demands on what a facility captures and for how long.

What reliable lifetime prediction requires:

Per-cycle performance logging. Dynamic binding capacity or a suitable surrogate, pressure drop, and recovery should be captured every cycle, not sampled occasionally, so the model sees the full trajectory rather than scattered points.
Sufficient cycle history. A model needs to observe enough of the decline to project it. Data spanning only the early, stable portion of a resin's life provides little signal about when it will approach its limit; the useful data accumulates over the full campaign history.
Linked cleaning and process context. Because degradation depends on cleaning regime, feed composition, and storage, these must be recorded alongside performance so the model can account for the conditions driving decline, not just the decline itself.
Analytical linkage. Where ligand leaching, recovery, and purity are measured analytically, connecting those results to the cycle record enriches the model and supports the mechanistic interpretation of what is driving degradation.

The practical implication is that resin lifetime prediction rewards facilities that instrument their processes for continuous data capture from the outset. Retrofitting a prediction capability onto sparse historical data is far harder than building it on a consistent, well-annotated cycle record, which is why the data infrastructure decision precedes the modelling one.

The Economic Case: Resin Extension vs. Batch Failure Risk

The reason resin lifetime prediction attracts investment is that the economics are unusually clear. Protein A resin is expensive enough that resin lifetime and reuse are a significant factor in process economics, and the tradeoff between extending reuse and risking failure is quantifiable in a way that many AI applications are not.

The components of the economic case:

The cost of premature replacement. Retiring a resin at a conservative fixed cycle discards capacity that still met specification. Across a multi-year manufacturing campaign, the cumulative cost of replacing resin earlier than necessary is substantial for a high-value affinity medium.
The cost of a failed batch. Running a resin past its reliable life risks a batch failure, which carries the cost of the lost product, the investigation, and potential supply disruption, typically far exceeding the cost of the resin itself. This asymmetry is why conservative limits exist.
The value of prediction. An accurate remaining-useful-life forecast narrows the gap between these two costs, allowing reuse to be extended toward the resin's true limit while maintaining the same protection against failure, which is precisely the outcome that makes the economic case compelling.
Cleaning optimisation upside. Where a model distinguishes fouling from hydrolysis, it can also inform cleaning strategy, potentially slowing the addressable component of degradation and extending life further, an additional return beyond the retirement decision itself.

For regulated manufacturing, any AI-based resin retirement decision must be validated and documented like any other process decision tool, with defined acceptance criteria and an audit trail for each cycle assessment. The lifecycle governance framework in ICH Q14 provides a useful model for how these predictive tools should be characterised, validated, and maintained over their operational life. AI accelerates and sharpens the retirement decision; it does not remove the obligation to justify it.


What This Means for Your Lab Resin lifetime prediction is one of the most accessible high-return entry points for AI in downstream processing, because the economic case is direct and the data you need is data your process already generates. Start by making sure you are logging dynamic binding capacity or a surrogate, pressure drop, and recovery every cycle, with cleaning and feed context linked, since that consistent record is what any model depends on. Favour hybrid approaches that combine degradation physics with data-driven learning, and use models that distinguish fouling from hydrolysis so you can act on the addressable component. Treat any retirement decision in a regulated setting as a validated, documented one. Done well, prediction lets you extend reuse toward the resin's true limit without increasing failure risk, which is exactly where the cost saving lives. For the full downstream picture, the AI in process chromatography guide and the AI in analytical science overview provide the surrounding context.

What This Means for Your Lab

Resin lifetime prediction is one of the most accessible high-return entry points for AI in downstream processing, because the economic case is direct and the data you need is data your process already generates. Start by making sure you are logging dynamic binding capacity or a surrogate, pressure drop, and recovery every cycle, with cleaning and feed context linked, since that consistent record is what any model depends on. Favour hybrid approaches that combine degradation physics with data-driven learning, and use models that distinguish fouling from hydrolysis so you can act on the addressable component. Treat any retirement decision in a regulated setting as a validated, documented one. Done well, prediction lets you extend reuse toward the resin's true limit without increasing failure risk, which is exactly where the cost saving lives. For the full downstream picture, the AI in process chromatography guide and the AI in analytical science overview provide the surrounding context.

This article was produced under Separation Science’s AI Editorial Guidelines

Frequently Asked Questions (FAQs)

How can machine learning predict resin lifetime?
Machine learning predicts resin lifetime by learning the degradation trajectory from per-cycle performance data, such as dynamic binding capacity, pressure drop, ligand leaching, and recovery, and projecting when the resin will cross a performance threshold. Models range from data-driven trend models to hybrid approaches that combine degradation physics with machine learning, the latter generally generalising better when process-specific data is limited. The output is a remaining-useful-life forecast that supports retirement decisions based on predicted performance rather than a fixed cycle count. Prediction accuracy depends heavily on consistent, long-horizon data capture linked to cleaning and process context.
What indicators show chromatography resin is degrading?
The main indicators are dynamic binding capacity decline, rising pressure drop across the column bed, ligand leaching, and gradual erosion of product recovery or impurity clearance across cycles. Dynamic binding capacity decline is the most direct signal, since it measures the resin's core function. Pressure drop increase points to physical changes such as fouling or bed compression, while ligand leaching signals the chemical hydrolysis pathway. No single indicator captures the full picture, which is why models combine several into a coherent degradation trajectory, distinguishing, for instance, capacity loss driven by fouling from capacity loss driven by ligand hydrolysis.
Can AI extend the lifetime of Protein A resin?
AI can help extend the usable lifetime of Protein A resin in two ways. First, an accurate remaining-useful-life prediction allows reuse to be extended toward the resin's true limit rather than retiring it at a conservative fixed cycle, without increasing failure risk. Second, models that distinguish fouling from ligand hydrolysis can inform cleaning strategy, potentially slowing the addressable, fouling-driven component of degradation. AI does not stop the intrinsic chemical aging caused by caustic exposure, which sets a hard ceiling, but it does help a facility use more of the life a resin genuinely has, which is where the cost saving comes from.
How do I monitor chromatography resin performance?
Monitor resin performance by logging key indicators every cycle rather than sampling occasionally: dynamic binding capacity or a suitable surrogate, pressure drop across the column, and product recovery, with cleaning regime and feed context recorded alongside. Where possible, link analytical results such as ligand leaching and purity to the cycle record. This continuous, well-annotated data is the foundation for any predictive model and also supports trending and early detection of abnormal decline. In regulated manufacturing, the monitoring and any resin retirement decision based on it should be validated and documented with defined acceptance criteria and an audit trail.
