While establishing baseline precision confirms that a chromatographic method yields tight cluster results under identical conditions, routine laboratory operations present continuous environmental and operational variance. Ambient temperatures shift across seasons, column lots vary from batch to batch, and different analysts execute protocols on distinct instrument models across global manufacturing sites.
To ensure that an analytical method remains robust against real-world operational variance, international regulatory standards under ICH Q2(R2) mandate a three-tiered precision evaluation framework: Repeatability, Intermediate Precision, and Reproducibility.
Understanding how to structure these three tiers prevents method transfer failures, isolates specific sources of laboratory variance, and satisfies data integrity standards during multi-site regulatory filings.
Key Takeaways for Analytical Chemists
- The Three-Tier Hierarchy: Precision is evaluated at increasing levels of operational variability: intra-assay (Repeatability), within-lab multi-factor (Intermediate Precision), and inter-laboratory (Reproducibility).
- Intermediate Precision Isolates Factors: Rather than simply repeating testing on a second day, a structured intermediate precision protocol deliberately varies analysts, instruments, column lots, and days to calculate variance contributions via Analysis of Variance (ANOVA).
- Reproducibility Governs Tech Transfer: Multi-site method transfers to contract testing or manufacturing sites require inter-laboratory reproducibility studies evaluated against the Horwitz Ratio ($\text{HorRat}$) parameter.
The Three Tiers of Chromatographic Precision
ICH Q2(R2) organizes precision into three distinct experimental tiers based on the scope of operational variables introduced during testing.
THE THREE TIERS OF METHOD PRECISION
┌─────────────────────────────────┐
│ REPRODUCIBILITY │
│ (Inter-Lab / Multi-Site) │
└────────────────┬────────────────┘
│
┌────────────────┴────────────────┐
│ INTERMEDIATE PRECISION │
│ (Within-Lab / Multi-Factor) │
└────────────────┬────────────────┘
│
┌────────────────┴────────────────┐
│ REPEATABILITY │
│ (Intra-Assay / Short-Term) │
└─────────────────────────────────┘
Precision Level | Operating Environment | Environmental & Operational Variables | Primary Validation Objective |
|---|---|---|---|
Repeatability (Intra-Assay) | Single analyst, single HPLC system, single day, short time interval. | Replicate injections from identical standard/sample preparations using the same column and mobile phase lot. | Measures inherent short-term variability of instrument hardware, integration, and volumetric prep. |
Intermediate Precision | Single laboratory, multiple days, multiple analysts, multiple instruments. | Deliberately varies analyst experience, column lot, mobile phase batch, instrument model/brand, and day. | Identifies internal laboratory variance components before routine release testing or tech transfer. |
Reproducibility | Multiple laboratories, multiple geographic locations, collaborative testing. | Full variation across multi-site equipment, environmental control, reagent sourcing, and laboratory culture. | Required for compendial method standardization and collaborative multi-site validation (e.g., USP / CMO transfer). |
Tier 1: Repeatability Protocol Design
Repeatability evaluates the minimum baseline variation of the analytical procedure. Under ICH Q2(R2), laboratories can satisfy repeatability requirements using one of two statistical experimental designs:
6 Replicates at 100% Target Concentration: Analyzing n = 6 independent sample preparations (or n = 6 replicate injections of a target test concentration).
9 Determinations Across 3 Concentration Levels: Analyzing n = 3 independent preparations across 3 concentration levels covering the specified working range.
Calculating Repeatability

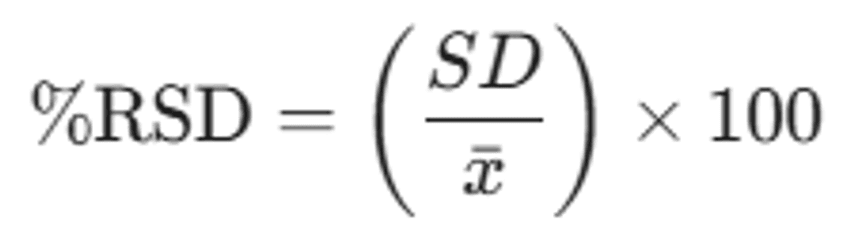

Repeatability is reported as the Percent Relative Standard Deviation %RSD of peak response or calculated concentration:
Google Gemini
Where SD is the standard deviation and x bar is the mean calculated response. Typical acceptance criteria for finished product drug substance assays require
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
%RSD ≤ 1.0%, while trace impurity or bioanalytical assays allow %RSD ≤ 5-10% at lower levels.
Tier 2: Intermediate Precision Protocols & ANOVA Breakdown
A frequent oversight in method validation is treating intermediate precision as a simple "Day 2" repeat of the repeatability run. To yield meaningful diagnostic data, intermediate precision must deliberately incorporate orthogonal variables.
Experimental Design Matrix for Intermediate Precision
A robust within-laboratory intermediate precision study uses a full or fractional factorial matrix across a minimum of 2 days, 2 analysts, and 2 distinct HPLC systems:
INTERMEDIATE PRECISION MATRIX
┌─────────────────────────────────────────────────┐
│ LABORATORY │
└────────────────────────┬────────────────────────┘
│
┌────────────────────────┴────────────────────────┐
▼ ▼
DAY 1 DAY 2
Analyst A | HPLC 1 | Lot A Analyst B | HPLC 2 | Lot B
┌─────────────────────────┐ ┌─────────────────────────┐
│ Prep 1, Prep 2, Prep 3 │ │ Prep 4, Prep 5, Prep 6 │
└─────────────────────────┘ └─────────────────────────┘
Variance Component Analysis via ANOVA
Rather than evaluating overall $\% \text{RSD}$ across all combined data points, Analysis of Variance (ANOVA) separates total observed variance ($\sigma_{\text{total}}^2$) into individual contributing factors:
σtotal2 =σday2 + sigmaanalyst2 + sigmainstrument2 + sigmaresidual2
- High Analyst Variance (
sigmaanalyst2): Indicates poor protocol clarity, ambiguous manual integration guidelines, or sample preparation technique dependence (e.g., inconsistent volumetric dilution or extraction sonication times). - High Instrument/Column Variance (
sigmainstrument2): Suggests sensitivity to system dwell volume differences (gradient delay), column thermal equilibration time, or flow cell geometry discrepancies between HPLC and UHPLC hardware. - High Residual Variance (
sigmaresidual2): Points to fundamental chromatographic instability, such as mobile phase degassing failure, lamp drift, or injector valve wear.
Tier 3: Reproducibility & Multi-Site Technology Transfer
Reproducibility assesses method performance across distinct corporate or commercial entity laboratories. It is typically evaluated during formal technology transfer protocols from an R&D/Sponsor facility to a Contract Development and Manufacturing Organization (CDMO) or quality control release laboratory.
TECHNOLOGY TRANSFER WORKFLOW
Sponsor R&D Lab (Origin) Receiving CDMO/QC Lab
┌───────────────────────────┐ ┌───────────────────────────┐
│ Established Method │ │ Target HPLC System │
│ Method Transfer Protocol ├────────────►│ Co-Trained Analysts │
│ Reference Material │ │ Independent Reagents │
└─────────────┬─────────────┘ └─────────────┬─────────────┘
│ │
└──────────────────┬──────────────────────┘
│
▼
Comparative Statistical Analysis
(F-Test, t-Test, HorRat Parameter)
The Horwitz Ratio (HorRat) Criterion
When evaluating inter-laboratory reproducibility across collaborative studies or global sites, the observed reproducibility %RSDR is compared against the predicted relative standard deviation (PRSD) calculated from the Horwitz equation:
PRSD = 2(1 - 0.5 * log10(C))
Where C is the mass fraction of analyte expressed as a decimal.
The Horwitz Ratio quantifies inter-laboratory acceptability:
HorRat = %RSD_observed / PRSD
- HorRat ≤ 0.5: Method precision is exceptionally high (typical for tightly controlled single-site operations).
- 0.5 < HorRat ≤ 1.5: Ideal precision performance across multi-laboratory collaborative studies.
- HorRat > 2.0: Unacceptable inter-laboratory variability. Indicates method instability, inadequate protocol instructions, or non-uniform reagent purity across testing sites.
Summary and Next Steps
Evaluating method precision requires a structured, multi-layered strategy. By moving from short-term repeatability to multi-factorial intermediate precision and inter-laboratory reproducibility, analytical chemists can systematically isolate hardware, operational, and environmental sources of variance before a method is deployed for routine quality control.
While precision measures measurement variability, how do we confirm that a method recovers the true analyte concentration without systematic loss or enhancement?
