Lipid nanoparticles are not manufactured in the conventional sense: they self-assemble spontaneously when an ethanolic solution of lipid components meets an aqueous nucleic acid solution under controlled mixing conditions. The particle size, polydispersity, and encapsulation efficiency of the resulting LNPs depend almost entirely on the mixing dynamics at the moment of assembly, making the choice of mixing technology one of the most consequential decisions in LNP process development.
Key Takeaways |
|
|
|
|
|
For the buffer management and in-line dilution context in which LNP formulation buffers are prepared and controlled, see Solving the Buffer Management Crisis in Biomanufacturing. For the downstream purification context covering the filtration and TFF steps that follow LNP formation, see Mastering Downstream Purification: Advanced Chromatography and Filtration in Biomanufacturing.
How LNPs Form: The Self-Assembly Mechanism That Mixing Controls
Lipid nanoparticles form through a mechanism of rapid precipitation and self-organization. A four-component lipid mixture consisting of an ionizable lipid, a phospholipid, cholesterol, and a PEG-lipid is dissolved in ethanol at defined molar ratios. This ethanolic lipid solution is then rapidly mixed with an aqueous buffer at low pH, typically between pH 3.5 and 5.5, under conditions that protonate the ionizable lipid and create a strong electrostatic interaction with the negatively charged phosphate backbone of the nucleic acid payload.
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
When the two streams meet in the mixing device, the rapid dilution of ethanol into the aqueous phase creates a transient supersaturated condition in which the lipid components simultaneously interact with the nucleic acid and self-organize into nanoparticle structures. The kinetics of this self-assembly are highly sensitive to mixing speed: if mixing is too slow, the lipids aggregate into large heterogeneous structures; if mixing is sufficiently rapid, the result is uniform nanoparticles in the eighty to two hundred nanometer range with encapsulation efficiencies greater than eighty-five percent for mRNA payloads.
The ionizable lipid is uncharged at physiological pH but becomes protonated at the acidic pH of the formulation buffer, facilitating mRNA encapsulation. After formation, the pH of the LNP suspension is raised to physiological pH for purification and final formulation, at which point the ionizable lipid returns to its uncharged state and the particle stabilizes. This pH-dependent behavior means that the formulation buffer pH during mixing is a critical process parameter that must be controlled within tight limits for consistent encapsulation efficiency.
Why Does the Mixing Method Determine LNP Quality?
The quality attributes of an LNP preparation, specifically particle size, polydispersity index (PDI), encapsulation efficiency, and morphology, are determined by the competition between the timescale of nucleic acid-lipid interaction and the timescale of lipid self-assembly. If lipid molecules have too much time to encounter each other before the ethanol concentration drops sufficiently to drive precipitation, they will form large disordered aggregates. Rapid mixing compresses both timescales, ensuring that all lipid molecules experience the same transition from organic solvent to aqueous environment simultaneously, which produces uniformly sized particles.
A comprehensive 2025 review published in Pharmaceutics on microfluidic and turbulent mixing for mRNA LNP vaccines analyzed the full range of commercially available mixing devices used in LNP formulation, from staggered herringbone microfluidic chips to turbulent impingement jet mixers. The review confirmed that mixing speed, expressed as the Reynolds number of the flow at the point of stream contact, is the primary determinant of particle size and PDI, and that all successful LNP mixing approaches share the objective of achieving turbulent or chaotic mixing within milliseconds of stream contact.
Single-use mixing formats address a specific manufacturing challenge: lipid components, particularly PEG-lipids and ionizable lipids, form thin adhesive films on the surfaces of stainless steel tubing, glass capillaries, and other reusable materials. Over the course of a production run, this surface fouling progressively alters the effective channel geometry of the mixing device, changing the mixing dynamics and therefore the particle size distribution of the product. Single-use cartridges, discarded after each formulation run, eliminate this source of within-batch and between-batch variability.
Single-Use Mixing Technologies for LNP Formulation
Microfluidic Staggered Herringbone Mixers

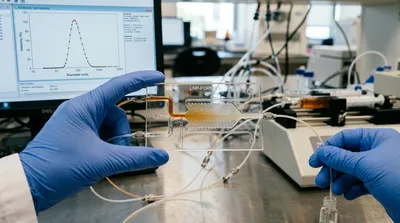

The staggered herringbone micromixer (SHM) was the first microfluidic format to demonstrate precise, reproducible LNP formation at small scale and remains the reference format for development-stage LNP formulation. SHM channels contain a series of angled ridges on the channel floor that create chaotic advection, rapidly folding and stretching the two fluid streams into a laminar interdigitated structure from which diffusive mixing across the thin lamellae is rapid. The resulting mixing time of less than ten milliseconds produces LNPs with the smallest achievable sizes and narrowest size distributions, often below thirty nanometers for optimized formulations. Research published in 2025 demonstrated that parallelized SHM architectures incorporating 256 mixing channels with antifouling surface coatings achieved stable production rates at commercial liter-per-hour throughputs while maintaining the particle quality characteristics of single-channel devices, demonstrating that SHM parallelization can bridge the throughput gap between development and commercial manufacturing.
