Executive Summary:
Understanding the rapid shift from traditional chromatography to capillary-based electromigration methods requires evaluating the following key analytical paradigms:
- The top-down shift: Traditional bottom-up proteomics lacks critical connectivity among co-occurring post-translational modifications (PTMs). Top-down proteomics preserves this structural context by analyzing intact proteoforms.
- The chromatographic bottleneck: Standard nano-flow reversed-phase liquid chromatography (nano-RPLC) struggles to achieve intact macromolecular separation due to slow diffusion kinetics, carryover, and irreversible surface adsorption.
- The electrophoretic resurgence: Capillary zone electrophoresis-mass spectrometry (CZE-MS) offers a high-resolution, stationary-phase-free separation mechanism based strictly on an analyte's charge-to-size ratio.
- Unprecedented resolving power: Driven by advanced capillary coatings and low-dilution MS interfaces, modern CZE-MS resolves complex isobaric proteoforms and monoclonal antibody (mAb) charge variants in minutes.
These foundational developments highlight how electrophoretic methods address the deep-seated chromatographic challenges of large-molecule separations.
The Evolution of Proteomic Workflows
For the past few decades, the field of proteomics has been dominated by the "bottom-up" paradigm. By enzymatically digesting complex protein mixtures into smaller, highly manageable peptides using enzymes like trypsin, liquid chromatography-tandem mass spectrometry (LC-MS/MS) systems have successfully cataloged thousands of proteins within a single sample.
Yet, as our understanding of biological systems deepens, the limitations of this approach have become glaringly obvious. When a protein is digested into peptides, the crucial connectivity among post-translational modifications (PTMs) is lost. We observe the individual pieces of the puzzle, but we cannot tell how they were assembled on the original, intact molecule.
To overcome this bottleneck, the scientific community is shifting its focus toward top-down proteomics: the characterization of intact proteins and their specific proteoforms—unique molecular entities arising from a single gene due to genetic variation, alternative splicing, and co-occurring PTMs.
Working in analytical science?
Register for a FREE Separation Science account to subscribe to the Separation Science Newsletter.
However, intact proteins are large, structurally diverse, and chemically complex. Standard nano-flow reverse-phase liquid chromatography (nano-RPLC), the workhorse of bottom-up workflows, frequently struggles when applied to intact macromolecular separation. Proteins exhibit slow mass transfer kinetics, are prone to irreversible adsorption onto stationary phases, and suffer from severe peak tailing, carryover, and poor chromatographic resolution.
Enter CZE-MS. Long relegated to specialized academic labs, CZE-MS is experiencing a massive industrial and research renaissance. Armed with advanced capillary chemistry and robust interface engineering, modern CZE-MS can achieve up to a million theoretical plates. This extraordinary resolving power has positioned CZE-MS as a premier, highly reproducible competitor to nano-LC, paving the way for the top-down proteomics revolution.
Why Intact Proteoforms Elude Traditional Chromatography
The cellular proteome is vastly more complex than the genome. While the human genome contains roughly 20,000 protein-coding genes, alternative splicing and chemical modifications swell the number of distinct proteoforms to millions. Characterizing these proteoforms is critical because subtle modifications—such as a single phosphorylation, glycosylation, or deamidation event—can radically alter a protein's function, localization, and association with disease.
The Limits of Reverse-Phase Liquid Chromatography (RPLC)
In reverse-phase liquid chromatography, separation is governed by hydrophobic interactions between the analyte and the stationary phase. For intact proteins, this hydrophobic partitioning mechanism faces several physical and thermodynamic challenges:
Conformational complexity: Large proteins expose different hydrophobic patches depending on their folding state, leading to heterogeneous retention, broad peaks, and split-peak artifacts.
Slow diffusion kinetics: The macromolecular diffusion coefficient is inversely proportional to molecular size. Slow diffusion within the pores of stationary phase beads leads to significant band broadening (Van Deemter resistance to mass transfer).
Carryover and memory effects: Intact proteins can bind irreversibly or semi-irreversibly to hydrophobic alkyl chains, slowly eluting in subsequent runs and contaminating analytical columns.
These physical and thermodynamic limits collectively render standard reversed-phase columns highly inefficient at resolving intact macromolecular mixtures.
The Electrophoretic Separation Advantage
CZE bypasses these chromatographic limitations by abandoning the stationary phase altogether. Instead, separation occurs in a completely open tubular capillary filled only with an electrolyte solution known as the background electrolyte (BGE).

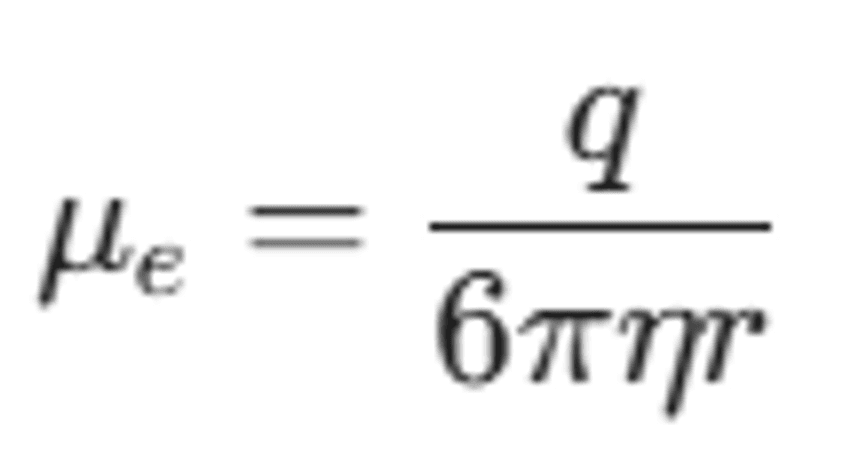

Separation in CZE is governed by electrophoretic mobility, which is dictated by the physical properties of the analyte according to the classic relation:
Google Gemini
Within this physical model, the individual variables govern the separation as follows:
- The variable q represents the net electrical charge of the proteoform.
- The variable η represents the dynamic viscosity of the background electrolyte.
- The variable r represents the hydrodynamic radius of the protein.
These physical parameters establish a separation mechanism that is orthogonal to traditional surface partition chromatography. Isobaric proteoforms—which share identical molecular weights but possess different charge states or structural conformations (and thus different hydrodynamic radii)—are easily resolved by CZE, whereas they typically co-elute as a single, unresolved envelope in nano-RPLC.
CZE-MS Performance and Reproducibility
Historically, CZE had a reputation for being finicky, with poor injection-to-injection reproducibility, low sample-loading capacity, and fragile MS coupling. Over the past five years, material science and fluid dynamics engineering have systematically resolved these limitations.
Critical Technological Enablers
Two key innovations have driven the modern resurgence of CZE-MS:
1. Advanced Capillary Surface Coatings
Unmodified fused-silica capillaries contain surface silanol groups that deprotonate to form negatively charged silanoate ions at neutral or basic pH. This surface charge drives an electroosmotic flow (EOF) toward the cathode, but it also causes intact cationic proteins to electrostatically adsorb onto the capillary wall.
To eliminate this wall adsorption, researchers have developed several highly stable capillary coatings:
- Covalent coatings: Chemically bonding neutral polymers, such as linear polyacrylamide (LPA) or polyvinyl alcohol (PVA), directly to the silanol groups completely masks the surface charge, suppressing EOF and preventing protein adsorption.
- Charged bilayer and multilayer coatings: Alternating polyelectrolyte layers yield a robust, highly charged surface that generates a stable, reproducible EOF, while electrostatic repulsion prevents proteins of like charge from adsorbing to the walls.
By establishing a robust barrier, these surface modifications maintain stable migration times over hundreds of analyses.
2. Sheathless and Nano-Sheath MS Interfaces
Coupling CZE to mass spectrometry requires completing the electrical circuit at the capillary exit while simultaneously generating an electrospray. Early "sheath-flow" interfaces used a makeup liquid that flowed at several microliters per minute to establish electrical contact, thereby severely diluting the nanoliter-scale peaks exiting the capillary.
Modern interfaces utilize two main design paradigms to preserve high absolute sensitivity at the capillary terminus:
- Porous tip (sheathless) ESI: The distal end of the fused-silica capillary is chemically etched with hydrofluoric acid until the wall is thin enough to be ion-permeable. Immersing this etched tip in an electrode reservoir establishes direct electrical contact through the glass wall without introducing any diluent gas or liquid, maintaining pristine separation efficiency right into the MS inlet.
- Low-flow coaxial nano-sheath interfaces: These systems deliver a highly controlled, ultra-low-flow organic modifier to the capillary tip. This provides sufficient organic content to stabilize the electrospray ionization of large, hydrophilic intact proteins without significantly broadening the separation peaks.
Both interface strategies dramatically lower the limit of detection, allowing scientists to detect proteins at attomole quantities.
Tracking Post-Translational Modifications (PTMs)
The practical utility of modern CZE-MS is most evident in the analysis of highly heterogeneous biologics, where minor structural alterations can compromise drug safety or efficacy.
Monoclonal Antibody (mAb) Charge Variant Profiling
Monoclonal antibodies are prone to diverse chemical degradations during bioprocess production and storage, including C-terminal lysine clipping, deamidation, and glycation. Standard chromatographic methods (such as ion-exchange chromatography, IEX) can separate these charge variants, but they are incredibly difficult to directly couple to MS due to high-salt mobile phases.
CZE-MS resolves this bottleneck. Because the background electrolytes used in CZE-MS are highly volatile (typically containing diluted formic acid or acetic acid), intact mAbs can be separated into their acidic, main, and basic charge variants and directly sprayed into the MS. This allows researchers to definitively identify the exact chemical modifications driving charge heterogeneity in a single, thirty-minute run.
Resolving Positional Isomers and Histone Code Mapping
Histones are small, highly basic proteins wrapped around DNA. They undergo extensive PTMs—including acetylation, methylation, and phosphorylation—that constitute the epigenetic "histone code." Resolving histone proteoforms is notoriously difficult because they often share the exact same amino acid sequence and modifications, differing only in the position of those modifications along the peptide backbone.
CZE-MS easily separates these positional isomers. An acetylated lysine at position 9 vs. position 14 alters the local charge distribution and hydrodynamic volume of the intact histone, creating distinct electrophoretic mobilities that allow the MS to record clean, isomer-specific fragmentation spectra.
Clinical Biomarker Discovery and Peptidomics
In clinical diagnostics, specific proteoforms often serve as highly sensitive indicators of disease pathology. For example, truncated or modified forms of cystatin C, transthyretin, or hemoglobin variants are diagnostic of renal failure, amyloidosis, and blood disorders, respectively. The high-throughput capability, minimal sample volume requirements, and immense separating power of CZE-MS make it ideal for screening large clinical cohorts to pinpoint trace-level proteoform biomarkers directly from complex biofluids.
Future Outlook
CZE-MS has emerged from its niche academic background to claim a central role in the modern analytical toolkit. By offering a separation mechanism based on charge-to-size ratios, it elegantly bypasses the mass-transfer limitations and irreversible adsorption that plague liquid chromatography of intact proteins. With column efficiencies reaching a million theoretical plates, CZE-MS provides unmatched clarity when mapping complex proteoforms and their delicate post-translational modifications.
As the biopharmaceutical pipeline increasingly shifts toward multispecific antibodies, gene therapies, and complex glycoprotein therapeutics, the demand for intact, top-down analysis will only grow. The next major frontier for CZE-MS lies in automation and integration: transitioning from manual capillary alignment to cartridge-based, plug-and-play microfluidic capillary systems that can run seamlessly in clinical and industrial QA/QC environments.
By bridging the gap between extreme resolution and rugged reproducibility, CZE-MS is not just competing with liquid chromatography—it is rewriting the rules of the top-down proteomics revolution.
